Timing Belt: Specifications (page 7 of 20)
- Make
- Lexus
- Model
- LS 430
- Engine
- V8-4.3L (3UZ-FE)
- Year
- 2002
- Section
- Timing Belt
MaintenanceSpecifications · page 7 of 20

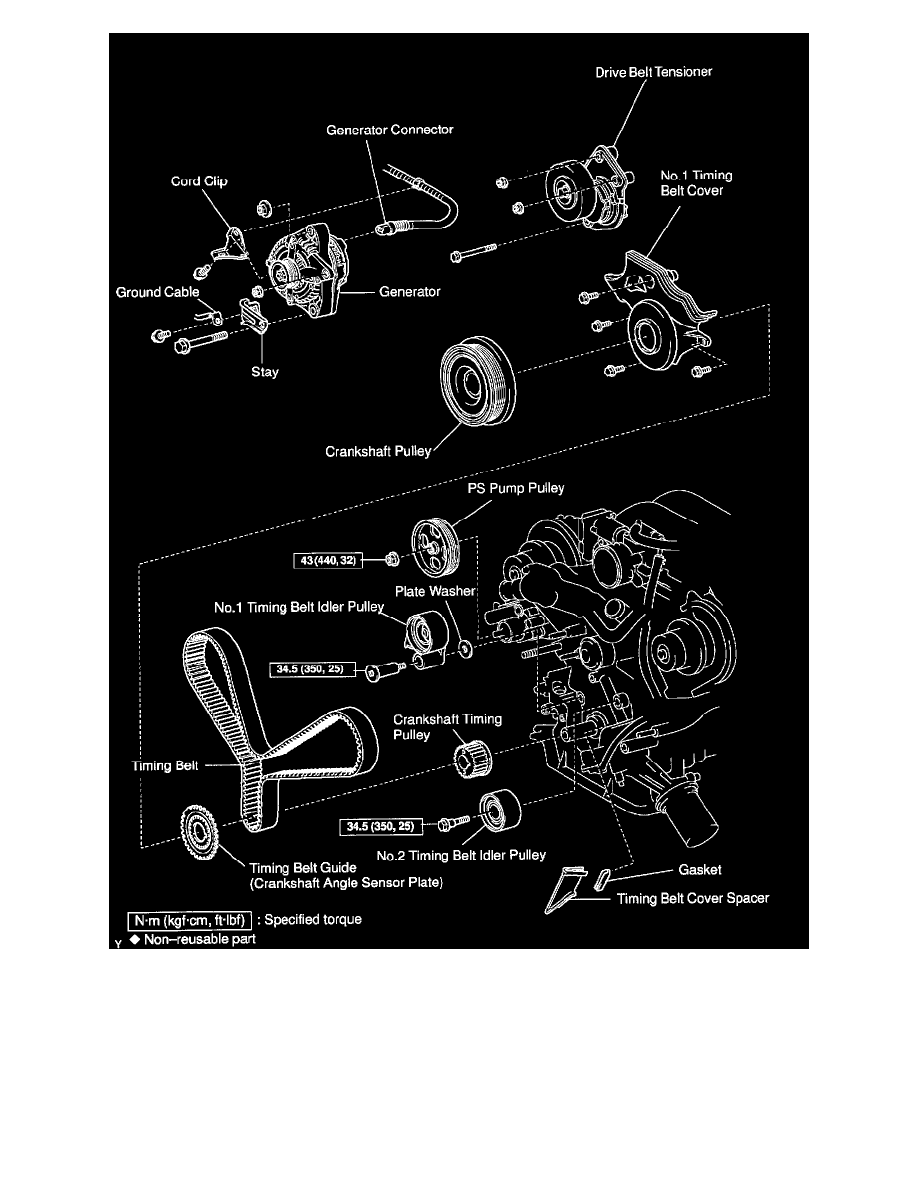

/Page-268003.png)
REMOVAL
1. REMOVE ENGINE UNDER COVER
2. DRAIN ENGINE COOLANT
3. REMOVE AIR CLEANER INLET
4. REMOVE V-BANK COVER AND ENGINE ROOM SIDE COVERS
5. REMOVE AIR CLEANER ASSEMBLY AND INTAKE AIR CONNECTOR ASSEMBLY
6. REMOVE DRIVE BELT
7. REMOVE RADIATOR ASSEMBLY
8. REMOVE LH NO. 3 TIMING BELT COVER
