Millenia V6-2.5L DOHC (1999)

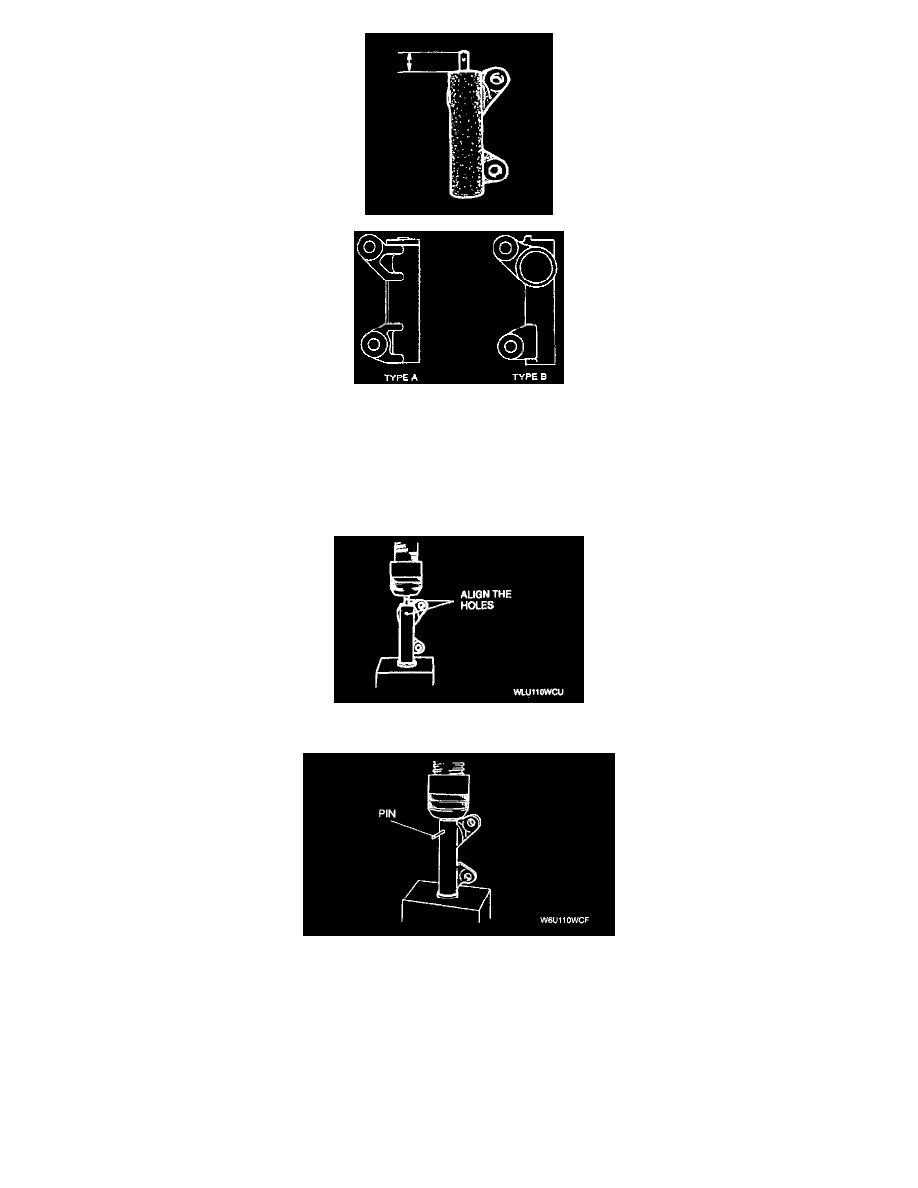

2. Check the auto tensioner for oil leakage. Replace the auto tensioner if necessary.
Projection (Free length):
Type A: 12.0 - 13.0 mm (0.473 - 0.511 inch)
Type B: 14.3 - 15.1 mm (0.563 - 0.594 inch)
Caution:
^
Applying pressure of more than 9.8 kN (1,000 kgf, 2,200 lbs.) can damage the auto tensioner.
3. Slowly press in the tensioner rod by using a press.
4. Insert a pin into the hole in the body as shown to hold the tensioner rod.
Pin diameter: 1.4 mm (0.055 inch)
Note:
^
This must be done to reduce the timing belt resistance when the idler pulley is installed.
