SteeringSteering column - with epas - up to 2000my · page 2 of 3

CAUTION: The steering column upper mounting bolts must be removed before the lower mounting bolts. This is to prevent the weight of the steering column damaging the upper mounting breakout capsules.

Diagram

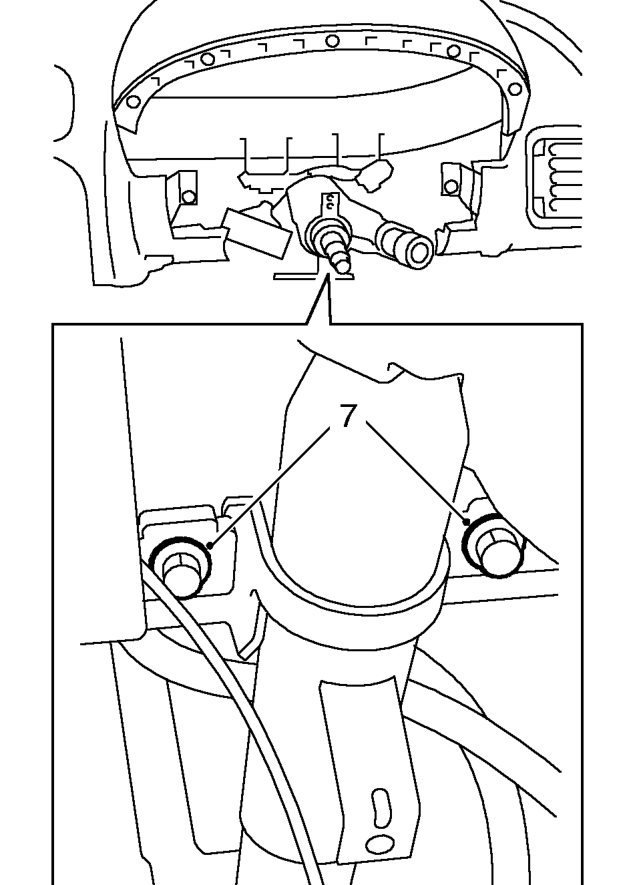

  1. Remove 2 bolts securing upper steering column to fascia rail.
Remove 2 bolts securing upper steering column to fascia rail.

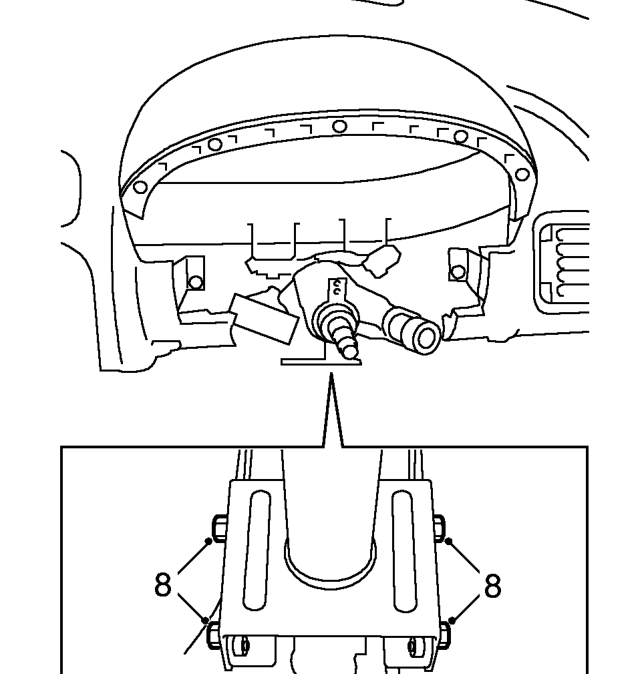

  1. Remove 4 bolts securing lower steering column to bracket.
  2. Release column assembly from steering rack pinion.
  3. Remove column from vehicle.
Remove column from vehicle.

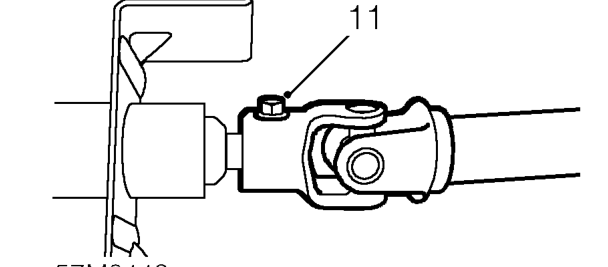

  1. Remove clamping bolt securing steering column to intermediate shaft. Remove intermediate shaft.
  2. Position steering column assembly in vice.
