GASKET - FLUID PAN

Service repair no - 44.24.05

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Drain gearbox fluid. See Adjustments.

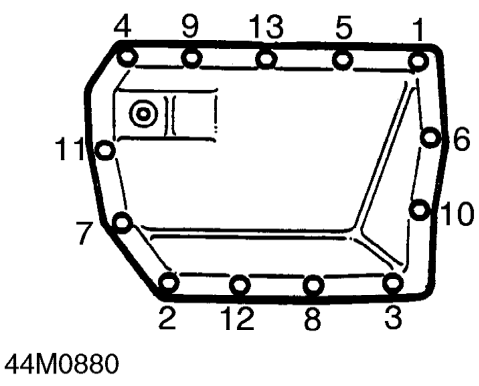

Gasket - fluid pan – Drain gearbox fluid. See Adjustments.
  1. Working in the sequence illustrated, loosen then remove 13 bolts securing fluid pan to gearbox.
  2. Release fluid pan from gearbox and filter, remove fluid pan.
  3. Remove and discard gasket.

Refit

  1. Clean mating faces of fluid pan and gearbox. Clean fluid pan.
  2. Lubricate new gasket with gearbox fluid and fit to fluid pan.

CAUTION: Do not apply adhesive to gasket.

  1. Position fluid pan to filter and gearbox.

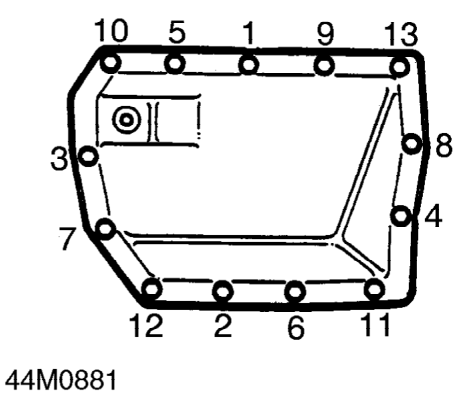

Gasket - fluid pan – Position fluid pan to filter and gearbox.
  1. Fit bolts securing fluid pan to gearbox and working in the sequence illustrated, tighten to 10 Nm.
  2. Refill gearbox with fluid. See Adjustments.
  3. Remove stand(s) and lower vehicle.
