Park/neutral and reverse light switch

PARK/NEUTRAL AND REVERSE LIGHT SWITCH

Service repair no - 44.15.15

Remove

1. Disconnect battery earth lead.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

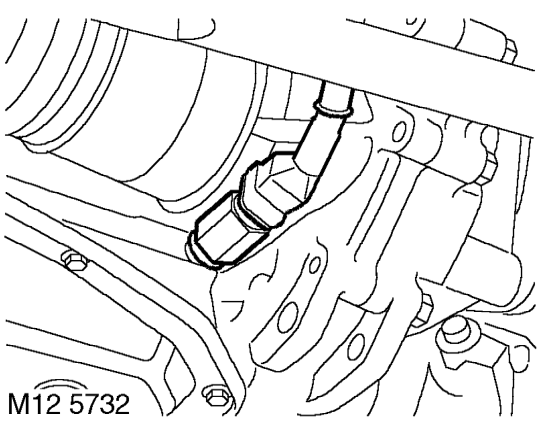

3. Position container to collect fluid loss from gearbox.

4. Disconnect multiplug from switch.
5. Loosen and remove switch from gearbox.
6. Remove and discard ’O’ ring from switch.

Refit

1. Clean switch and mating face of gearbox.
2. Lubricate new ’O’ ring with gearbox fluid and fit to switch.
3. Fit switch to gearbox and tighten to 12 Nm.
4. Connect multiplug to switch.
5. Remove stand(s) and lower vehicle.
6. Top-up gearbox fluid level. See MAINTENANCE.
7. Connect battery earth lead.

SOLENOID - SHIFT LOCK

Service repair no - 44.15.36

Remove

1. Remove gear lever assembly. See this section.

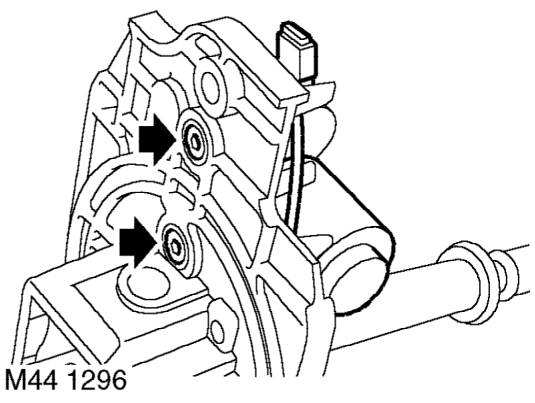

2. Remove 2 Allen bolts securing shift lock solenoid.
3. Release shift lock solenoid from gear lever housing and remove solenoid.

Refit

1. Position shift lock solenoid and engage to gear lever housing.
2. Fit Allen bolts securing shift lock solenoid and tighten to 15 Nm.
3. Fit gear lever assembly. See this section.
