Automatic gearbox (Stepspeed Em-CVT)Primary bearing · page 1 of 2

Refit

  1. Clean pipe end and mating faces.
  2. Connect pipe to intermediate pipe.
  3. Using a new ’O’ ring, position pipe to gearbox and tighten union to 14 Nm .
  4. Position pipe clamp, fit and tighten clamp bolt to 10 Nm.
  5. Remove stand(s) and lower vehicle.
  6. Top-up gearbox fluid level. See MAINTENANCE.

PRIMARY BEARING

Service repair no - 44.36.14

Remove

  1. Raise rear of vehicle.
  2. Remove LH rear road wheel.
  3. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Primary bearing – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

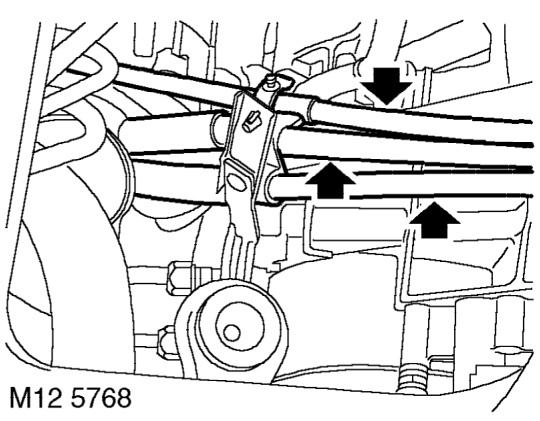

  1. Release 2 hand brake cables and gear selector cable from clips on air cleaner mounting bracket.
Primary bearing – Release 2 hand brake cables and gear selector cable from clips on air cleaner mounting bra

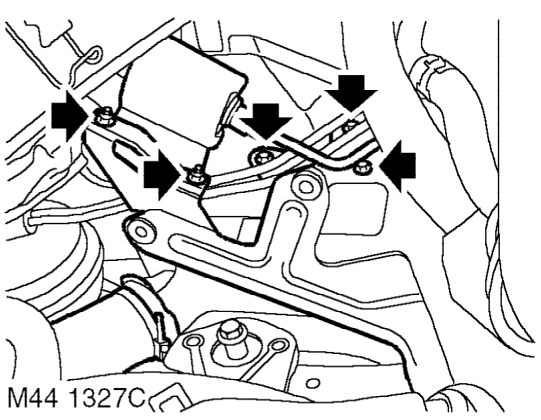

  1. Remove 2 nuts securing fuel filter to air cleaner mounting bracket and release filter from bracket.
  2. Remove 3 bolts securing air cleaner mounting bracket to body and remove bracket.
  3. Remove gearbox primary cover seal. See this section.
