Automatic gearbox (Stepspeed Em-CVT)Led module - gear selection

LED MODULE - GEAR SELECTION

Service repair no - 44.15.10

Remove

  1. Remove gearchange selector knob.
  2. Release gaiter from centre console.

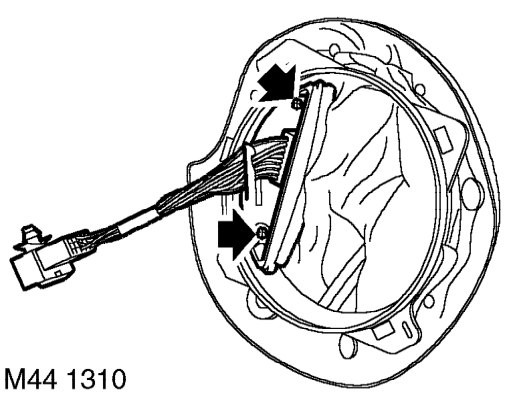

Led module - gear selection – Release gaiter from centre console.
  1. Disconnect LED module multiplug and remove gaiter.
  2. Remove 2 screws securing LED module and remove module.

Refit

  1. Position LED module to gaiter and secure with screws.
  2. Position gaiter to centre console, connect multiplug and secure gaiter to centre console.
  3. Fit gear selection knob.

SWITCH - PRND

Service repair no - 44.15.13

Remove

  1. Remove centre console. See BODY, Interior trim components.

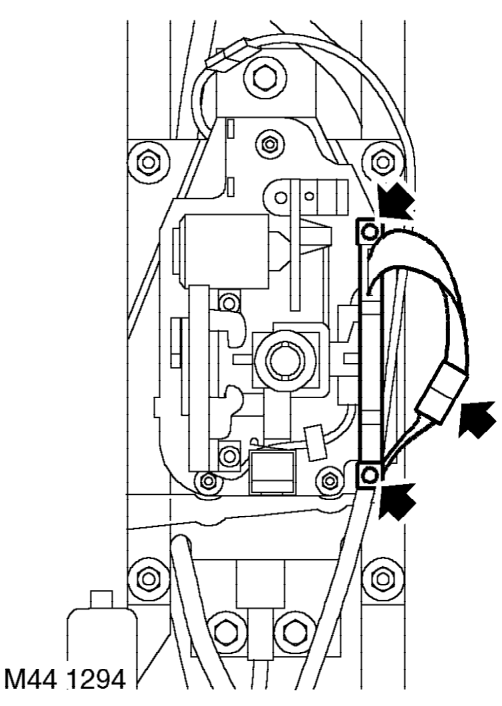

Switch - prnd – Remove centre console. See BODY, Interior trim components.
  1. Disconnect PRND switch multiplug.
  2. Remove 2 screws securing PRND switch and remove switch.

Refit

  1. Position PRND switch, engage pin to gear lever and secure switch with screws.
  2. Connect PRND switch multiplug.
  3. Fit centre console. See BODY, Interior trim components.
