Automatic gearbox (Stepspeed Em-CVT)Switch - steering wheel remote

SWITCH - STEERING WHEEL REMOTE

Service repair no - 44.15.70

Remove

  1. Disconnect battery earth lead.

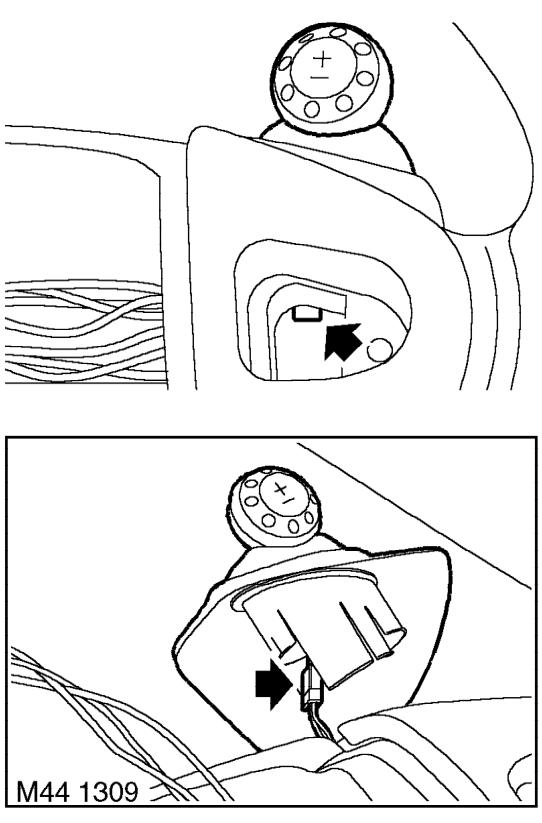

Switch - steering wheel remote – Disconnect battery earth lead.
  1. Release horn switch from steering wheel and position aside.
  2. Release clip securing remote switch and release switch from steering wheel.
  3. Disconnect remote switch multiplug and remove switch from steering wheel.

Refit

  1. Position remote switch, connect multiplug and secure switch to steering wheel.
  2. Position horn switch and secure in steering wheel.
  3. Connect battery earth lead.

MICROSWITCH - MANUAL/SPORT AND +/- SWITCH

Service repair no - 44.15.72

Remove

  1. Remove gear lever assembly. See this section.

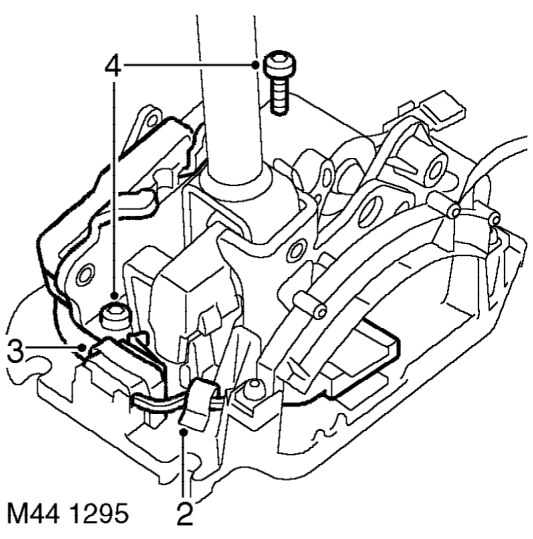

Microswitch - manual/sport and +/- switch – Remove gear lever assembly. See this section.
  1. Release clip securing harness to gear lever housing.
  2. Remove clip securing manual/sport microswitch and collect microswitch spacer.
  3. Remove 2 Allen bolts securing +/- switch to gear lever housing and remove switch assembly.

Refit

  1. Position +/- switch to gear lever housing. Fit Allen bolts and tighten to 12 Nm.
  2. Fit microswitch spacer, position manual/sport microswitch and secure with clip.
  3. Secure harness clip to gear lever housing.
  4. Fit gear lever assembly. See this section.
