Automatic gearbox (Stepspeed Em-CVT)Gearbox interface unit (GIU) · page 1 of 3

GEARBOX INTERFACE UNIT (GIU)

Service repair no - 44.15.81

Remove

  1. Disconnect battery earth lead.
Gearbox interface unit (giu) – Disconnect battery earth lead.

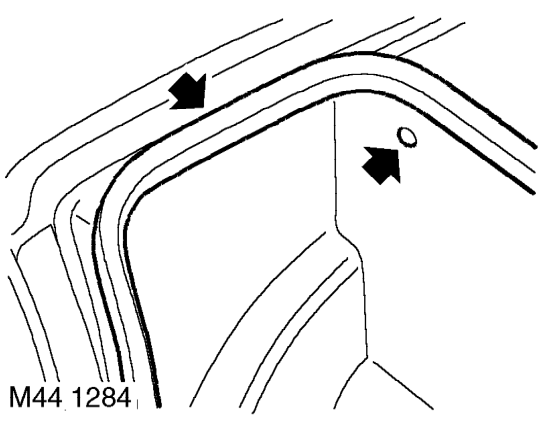

  1. Release boot lid aperture seal from LH side of aperture flange.
  2. Remove clip securing LH side of luggage compartment trim and release trim for access to GIU.

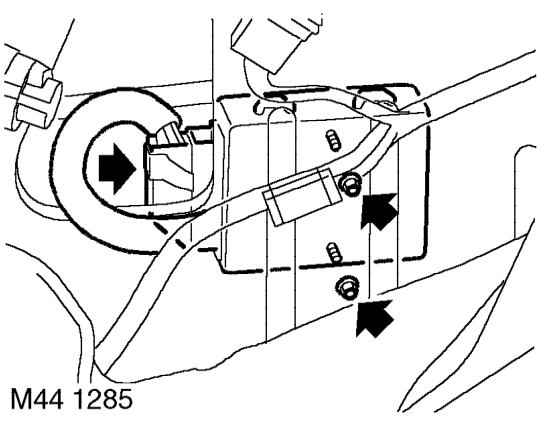

Gearbox interface unit (giu) – Remove clip securing LH side of luggage compartment trim and release trim for access to GI
  1. Remove 2 nuts securing GIU to body.
  2. Release GIU, disconnect multiplug and remove GIU.

Refit

  1. Position new GIU and connect multiplug.
  2. Fit GIU to body and secure with nuts.
  3. Refit trim and secure with clip.
  4. Fit boot lid aperture seal to flange.
  5. Connect battery earth lead.

GEARBOX & CONVERTER - STEPSPEED (Em-CVT) - REMOVE FOR ACCESS & REFIT

Service repair no - 44.20.02.99

Remove

  1. Remove engine and gearbox assembly. See ENGINE, Repairs.

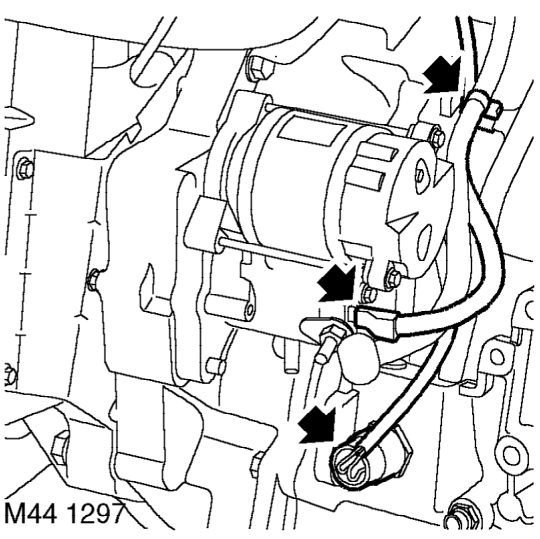

Gearbox & converter - stepspeed (em-cvt) - remove for access & refit – Remove engine and gearbox assembly. See ENGINE, Repairs.
  1. Disconnect Lucar from starter solenoid. Disconnect multiplug from actuator control motor and release lead from clip.
