Automatic gearbox (Stepspeed Em-CVT)Secondary cover seals

SECONDARY COVER SEALS

Service repair no - 44.20.33

Remove

  1. Remove LH engine mounting. See ENGINE, Repairs.
Secondary cover seals – Remove LH engine mounting. See ENGINE, Repairs.

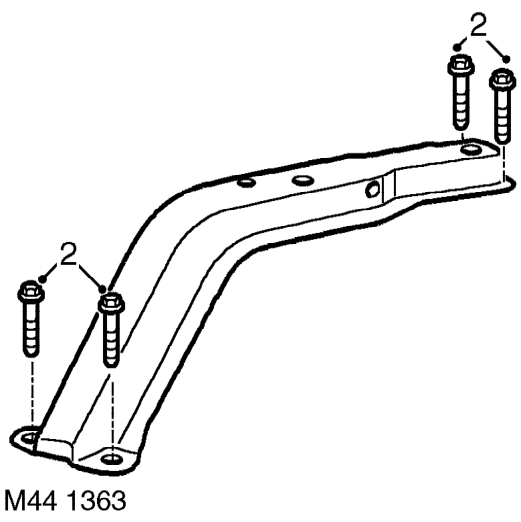

  1. Remove 4 bolts securing LH buttress and manoeuvre buttress to access secondary cover.
Secondary cover seals – Remove 4 bolts securing LH buttress and manoeuvre buttress to access secondary cover.

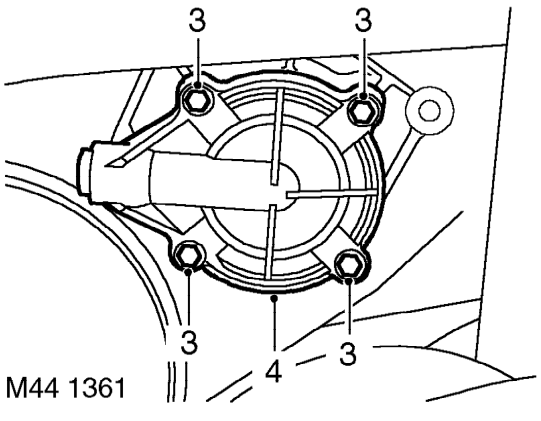

  1. Remove 4 bolts securing secondary cover to gearbox.
  2. Remove secondary cover.

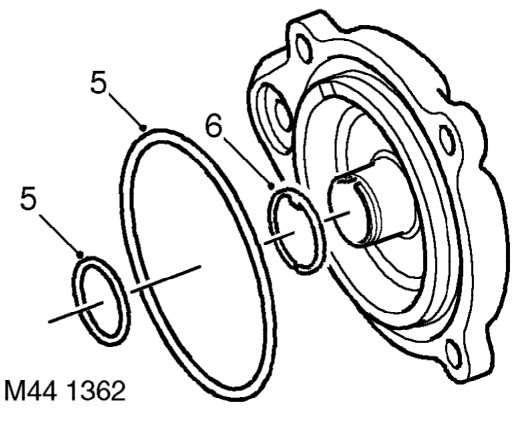

Secondary cover seals – Remove secondary cover.
  1. Remove and discard 2 ’O’ rings from cover.
  2. Remove and discard split ring.

Refit

  1. Clean secondary cover and mating faces of cover and gearbox.
  2. Lubricate new ’O’ rings with clean gearbox fluid and fit to secondary cover.
  3. Fit new split ring to secondary cover.
  4. Fit and align secondary cover to gearbox.
  5. Fit bolts securing secondary cover to gearbox and tighten to 10 Nm.
  6. Align LH buttress to subframe, fit bolts and tighten to 45 Nm.
  7. Fit LH engine mounting. See ENGINE, Repairs.
