Gearbox interface unit (GIU) (page 3 of 3)

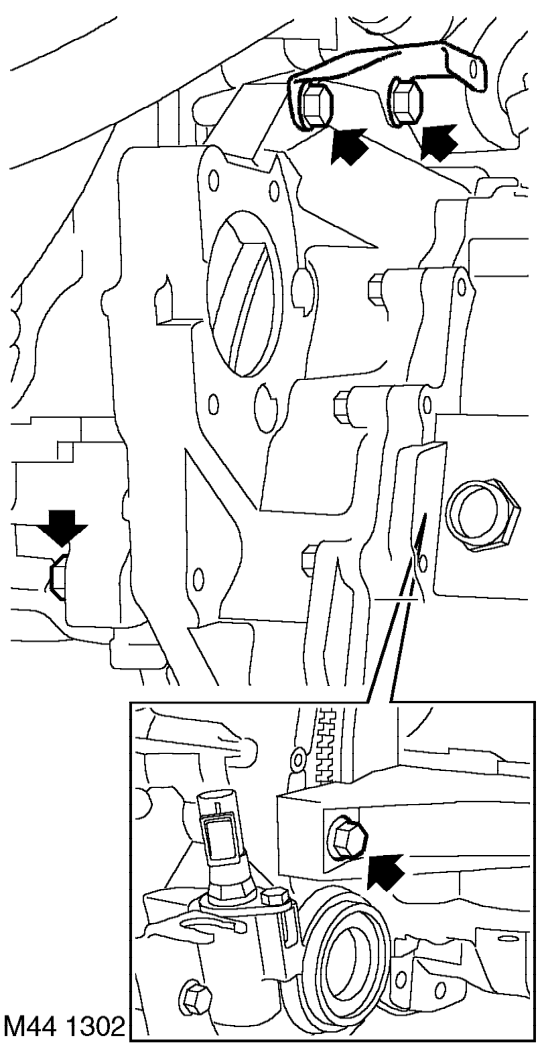

8. Remove 4 bolts securing gearbox to engine. Collect mounting plate.
9. With assistance remove gearbox from engine.

Refit

1. Clean mating faces of engine and gearbox, dowel and dowel holes.
2. With assistance, fit gearbox, locate on dowels and secure to engine.
3. Position mounting plate, fit bolts securing gearbox to engine and tighten to 80 Nm.
4. Connect speed sensor and speedometer transducer multiplugs.
5. Fit flywheel rear cover and secure with bolts.
6. Position starter motor to gearbox, fit and tighten bolts to 80 Nm.
7. Fit flywheel front cover to gearbox and secure with bolts.
8. Position exhaust heat shield and secure with bolts.
9. Connect multiplug to actuator control motor and secure lead to clip.
10. Fit engine and gearbox assembly. See ENGINE, Repairs.
