Gearbox interface unit (GIU) (page 2 of 3)

Make

MG

Model

TF Factory Workshop Manual

Year

2002–2005

Section

Repairs

Automatic gearbox (Stepspeed Em-CVT)Gearbox interface unit (GIU) · page 2 of 3

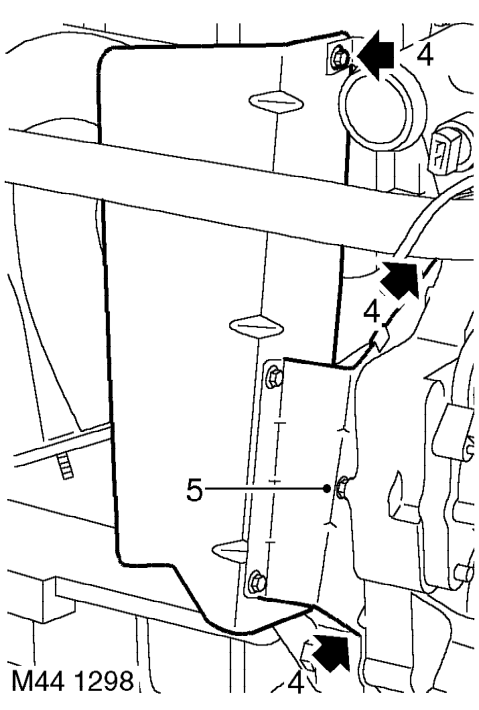

3. Remove 3 bolts securing exhaust heat shield and remove heat shield.
4. Remove bolt securing flywheel cover to gearbox and remove cover.

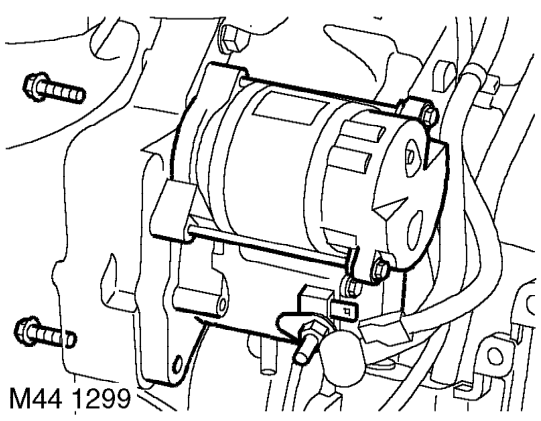

5. Remove 2 bolts securing starter motor to gearbox and remove starter motor.

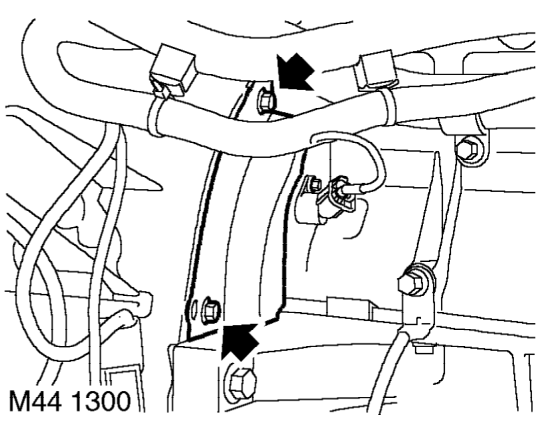

6. Remove 2 bolts securing flywheel rear cover to gearbox and remove cover.

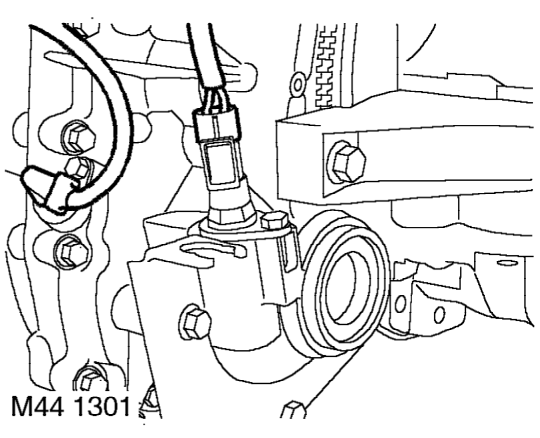

7. Disconnect multiplugs from speed sensor and speedometer transducer.

11 Transmission
