Primary bearing (page 2 of 2)

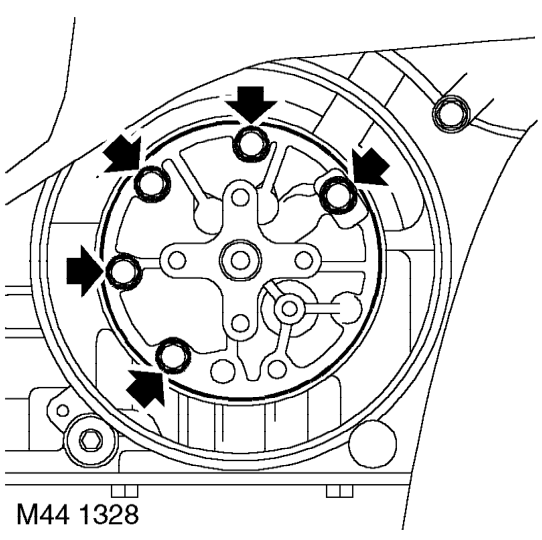

8. Remove 5 remaining bolts securing fluid pump.
9. With care, position 2 levers 180° apart and remove fluid pump.

NOTE: To prevent damage to primary housing, place 2 pieces of wood between levers and primary housing when removing oil pump.

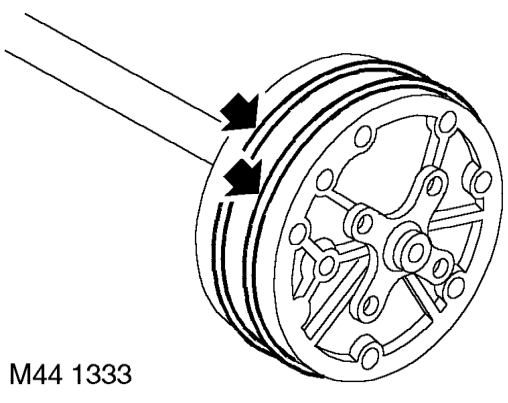

10. Remove and discard 2 ’O’ rings from oil pump.

11. Remove and discard belleville washer.

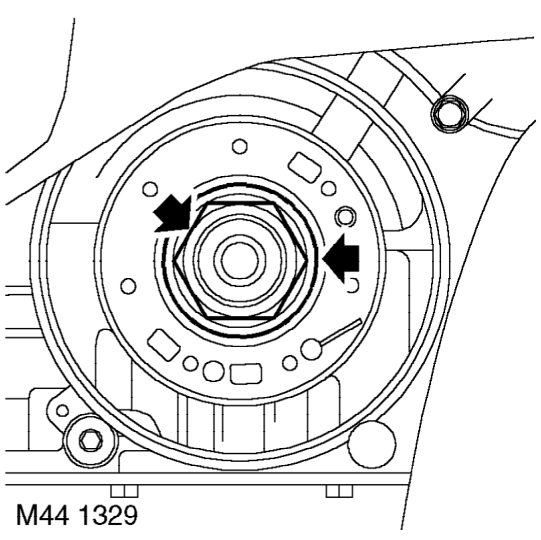

12. Using an air impact wrench with a torque capacity of 300 Nm, remove primary bearing nut.

NOTE: Initially start to undo nut with the impact wrench in the minimum position. Increase torque until nut is released.

13. Using a small screwdriver, lever out seal from primary bearing.

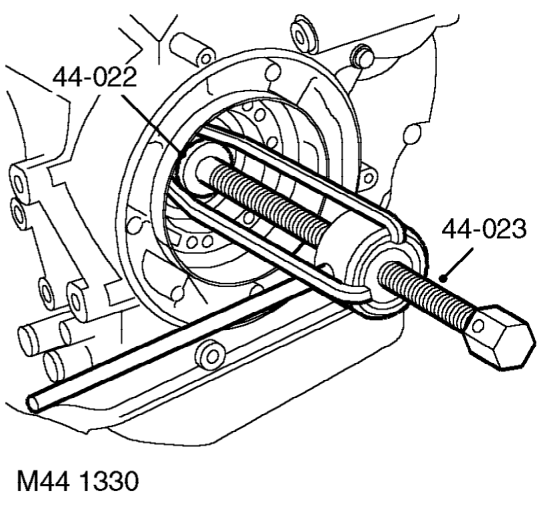

14. Position thrust button 44-022 into primary shaft.
15. Assemble tool 44-023 underneath the exterior ring of primary bearing.
16. Tighten centre bolt of tool 44-023 and remove primary bearing.
