MG TF Factory Workshop Manual (2002-2005)16 · Brakes
16 · Brakes

Handbrake lever (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
BrakesHandbrake lever · page 2 of 3

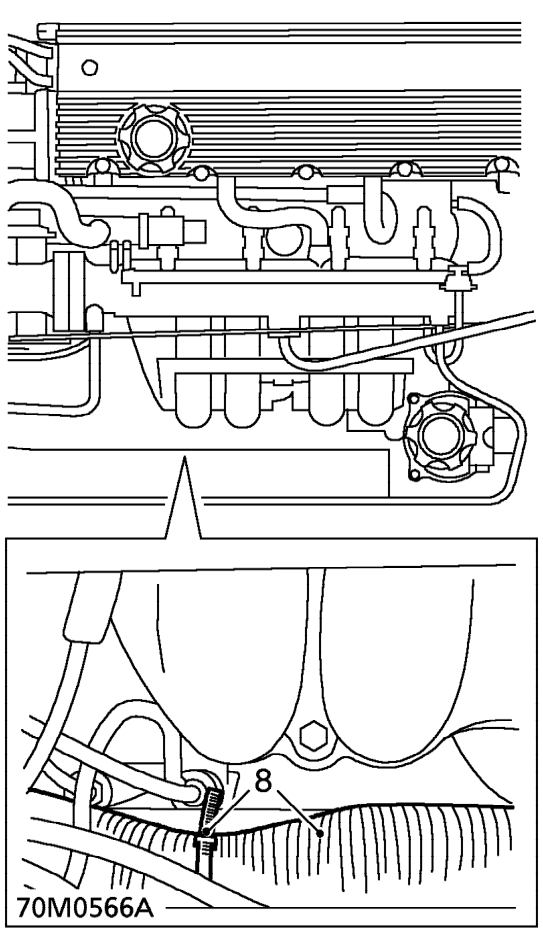

Diagram
  1. Release air intake duct from subframe clip and position duct aside.

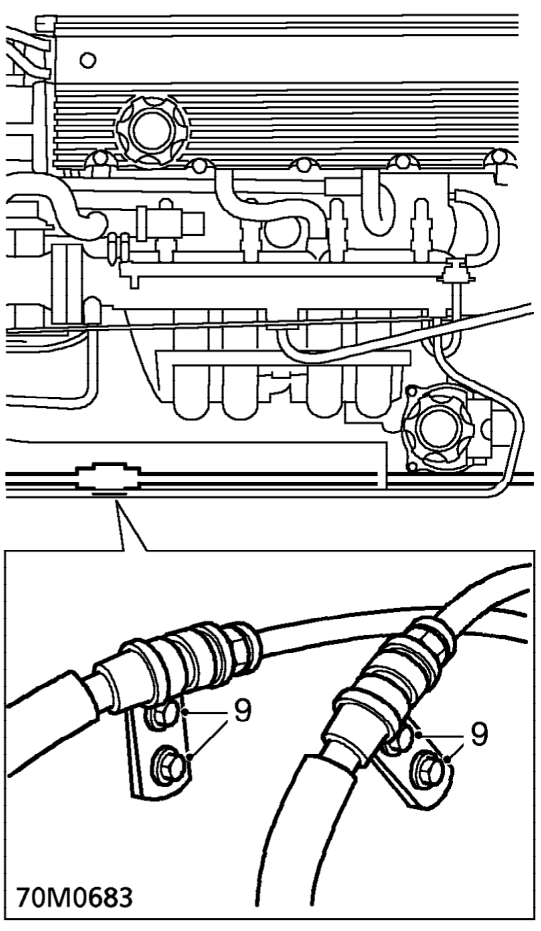

Release air intake duct from subframe clip and position duct aside.
  1. Remove 2 bolts securing each handbrake cable to luggage compartment bulkhead.
  2. Release handbrake cables from air cleaner mounting bracket.
  3. Drain engine coolant. See COOLING SYSTEM, Adjustments.
  4. Place support jack underneath engine sump and support engine weight.

CAUTION: To prevent damage to sump place a piece of wood between jack and sump.
