MG TF Factory Workshop Manual (2002-2005)06 · Engine management (MEMS 3), fuel and emission systems
06 · Engine

Throttle cable (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Engine management (MEMS 3), fuel and emission systemsThrottle cable · page 2 of 2
Diagram

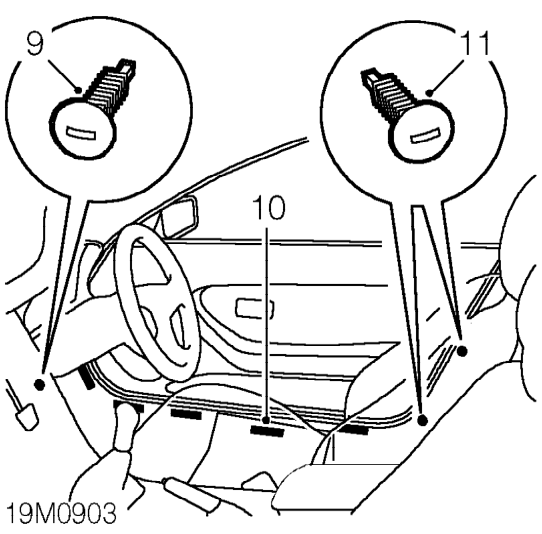

  1. Remove stud securing carpet to inner wheel arch.
  2. Release carpet from door seal and 5 velcro strips.
  3. Remove 2 studs securing carpet to ’B’ post and release carpet from door seal and velcro to reveal cables.
Remove 2 studs securing carpet to ’B’ post and release carpet from door seal and velcro to

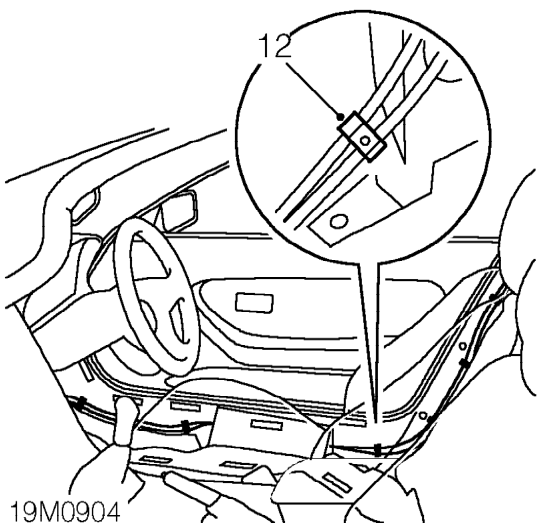

  1. Release cable from 3 sill clips and 3 ’B’ post clips.
  2. Release cable from floorpan crossmember.

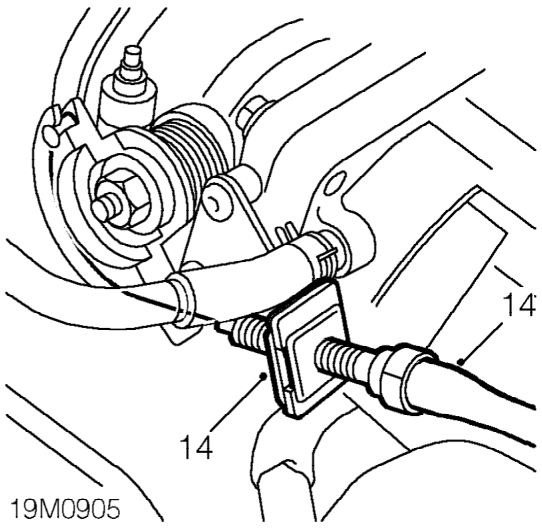

Release cable from floorpan crossmember.
  1. Release throttle cable from throttle body abutment and cam and position aside.
Release throttle cable from throttle body abutment and cam and position aside.

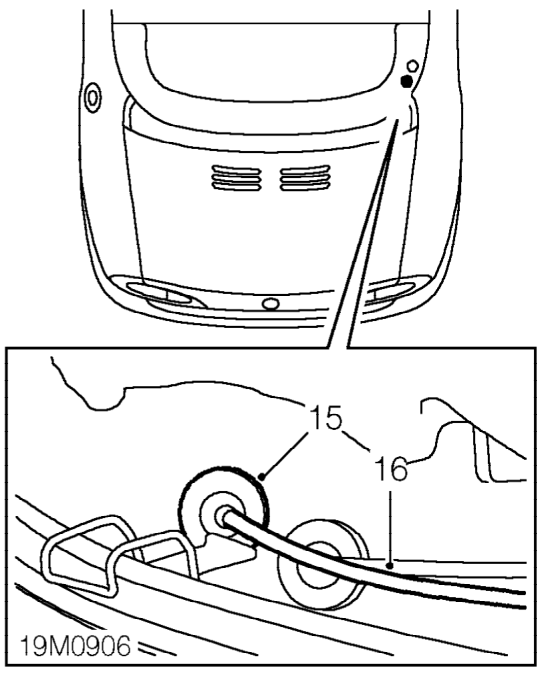

  1. Position hoodwell insulation aside and release cable grommet from hoodwell.
  2. Remove throttle cable.
