BEARINGS - HUB

Service repair no - 60.25.14

Remove

  1. Raise front of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel(s).
  2. Knock back hub nut stake and remove hub nut.
  3. Remove front brake disc. See BRAKES, Repairs.
Bearings - hub – Remove front brake disc. See BRAKES, Repairs.

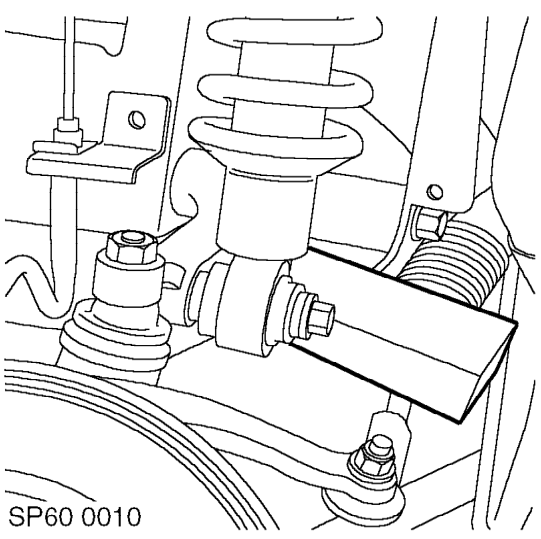

  1. Position jack under lower suspension arm, raise jack sufficiently and fit a suitable block between upper suspension arm and subframe. Lower jack.
Bearings - hub – Position jack under lower suspension arm, raise jack sufficiently and fit a suitable block
  1. Remove nut securing steering rack ball joint to steering arm.

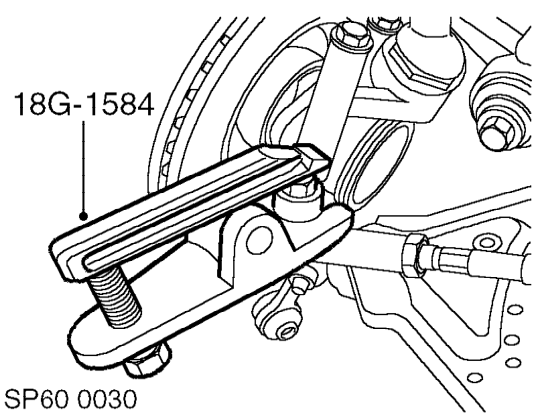

  2. Release ball joint taper from steering arm using 18G-1584 .
Bearings - hub – Release ball joint taper from steering arm using 18G-1584 .
  1. Remove and discard lock nut securing ball joint to upper suspension arm.

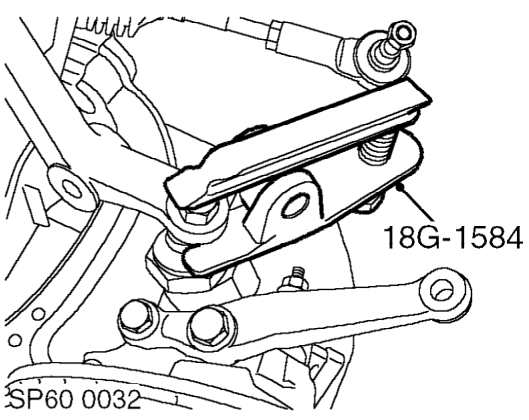

  2. Fit slave nut to ball joint threads, position 18G-1584 and release ball joint taper from upper suspension arm. Remove 18G-1584 and slave nut.
Bearings - hub – Fit slave nut to ball joint threads, position 18G-1584 and release ball joint taper from u

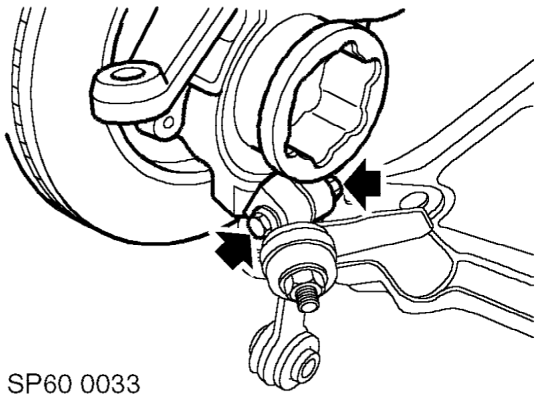

  1. Remove nut and bolt securing hub to lower suspension arm ball joint.
  2. Release hub from lower ball joint and remove hub assembly.
