Front suspensionSub frame - front suspension - manual transmission models · page 1 of 7
Diagram

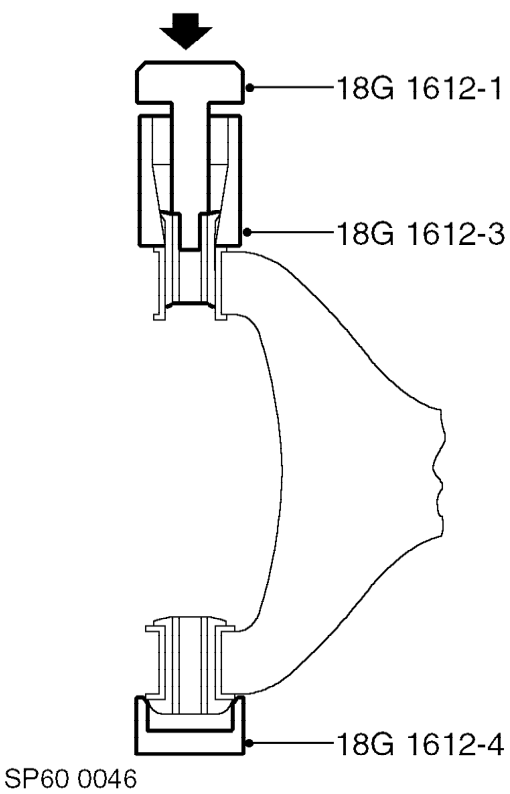

  1. Position lower arm with tool 18G 1612-4 .
  2. Fit tool 18G 1612-3 to front bush location.
  3. Lubricate front bush with Marlene 148 rubber lubricant.
  4. Fit bush into tool 18G 1612-3 with flat flange uppermost.
  5. Press bush into lower arm using tool 18G 1612-1 .
  6. Remove arm from press.
  7. Fit front lower arm. See this section.

SUB FRAME - FRONT SUSPENSION - MANUAL TRANSMISSION MODELS

Service repair no - 60.35.78

Remove

  1. Position vehicle on a 2 post ramp.
  2. Disconnect battery earth lead.
  3. Disconnect battery positive lead,
Sub frame - front suspension - manual transmission models – Disconnect battery positive lead,

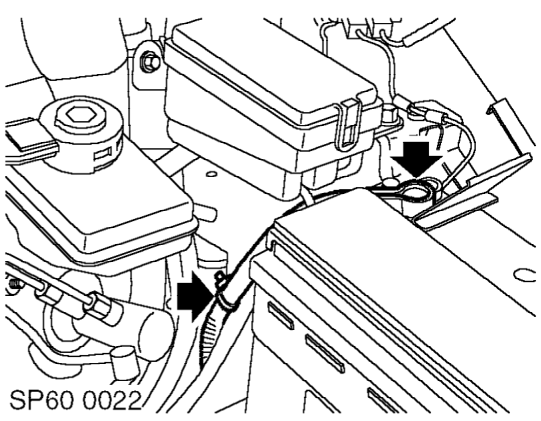

  1. Release main fuse and fuse box connections, release from clips and position aside.
Sub frame - front suspension - manual transmission models – Release main fuse and fuse box connections, release from clips and position aside.
  1. Remove bolt securing steering column universal joint to steering rack.
  2. Release steering column from steering rack.
  3. Remove 3 nuts securing steering rack pinion cover to body.
  4. Remove front road wheels.
