SUSPENSION ARM - LOWER FRONT

Service repair no - 60.35.03

Remove

Suspension arm - lower front – Service repair no - 60.35.03

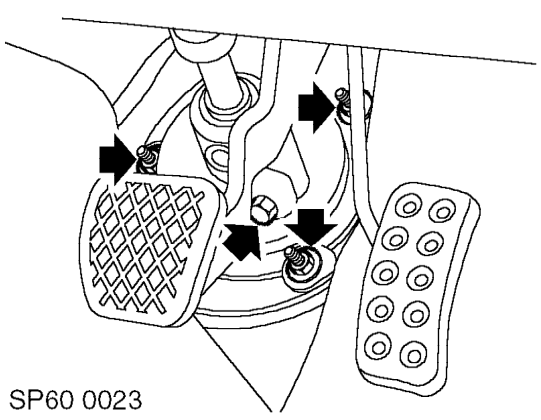

  1. Remove bolt securing steering column universal joint to rack pinion.
  2. Release steering column universal joint from rack pinion.
  3. Remove 3 nuts securing steering rack pinion cover to body.
  4. Raise front of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

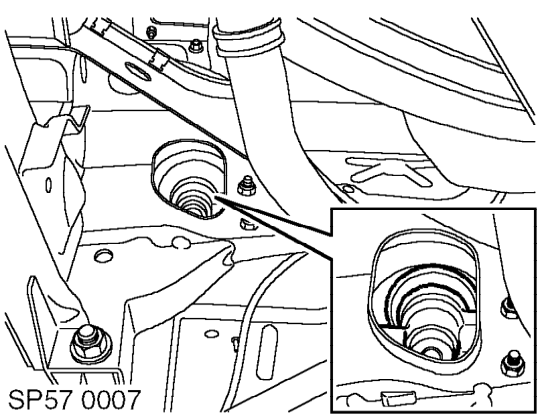

  1. Remove road wheel(s).
Suspension arm - lower front – Remove road wheel(s).

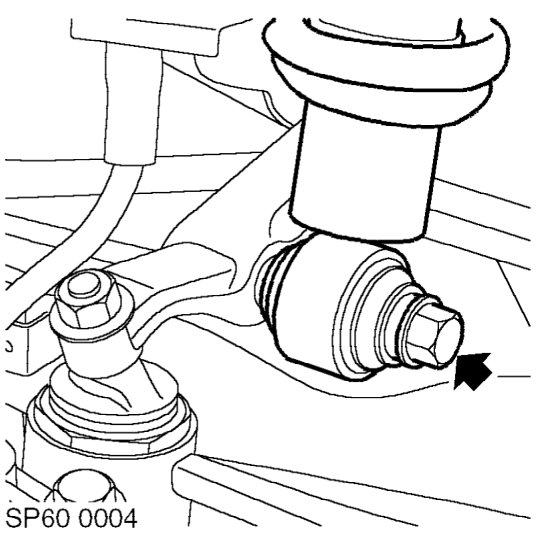

  1. Release pinion cover from steering rack pinion housing and retaining studs.
Suspension arm - lower front – Release pinion cover from steering rack pinion housing and retaining studs.

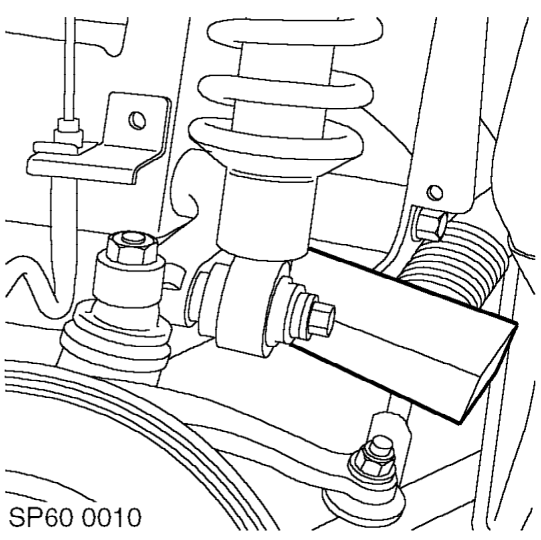

  1. Remove bolts securing damper assemblies to upper suspension arms, move dampers aside.
Suspension arm - lower front – Remove bolts securing damper assemblies to upper suspension arms, move dampers aside.
  1. Raise suspension and fit a suitable block between upper arm and subframe.
