BEARINGS - SUSPENSION ARM ASSEMBLY - UPPER

Service repair no - 60.35.05

Remove

  1. Raise front of vehicle and support one side on stand.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Remove road wheel(s).

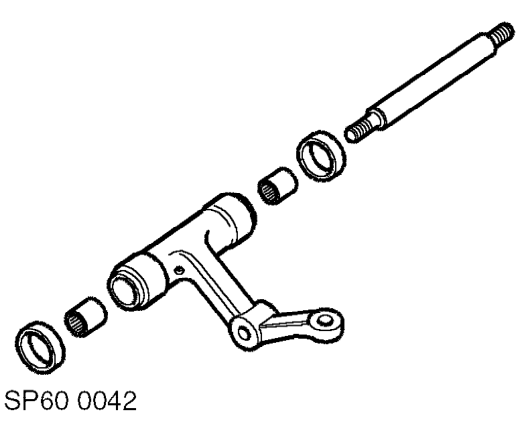

  2. Remove upper suspension arm. See this section.
Bearings - suspension arm assembly - upper – Remove upper suspension arm. See this section.
  1. With the pivot shaft and rubber seals removed, note fitted position of bearings in upper suspension arm.
Bearings - suspension arm assembly - upper – With the pivot shaft and rubber seals removed, note fitted position of bearings in upper s

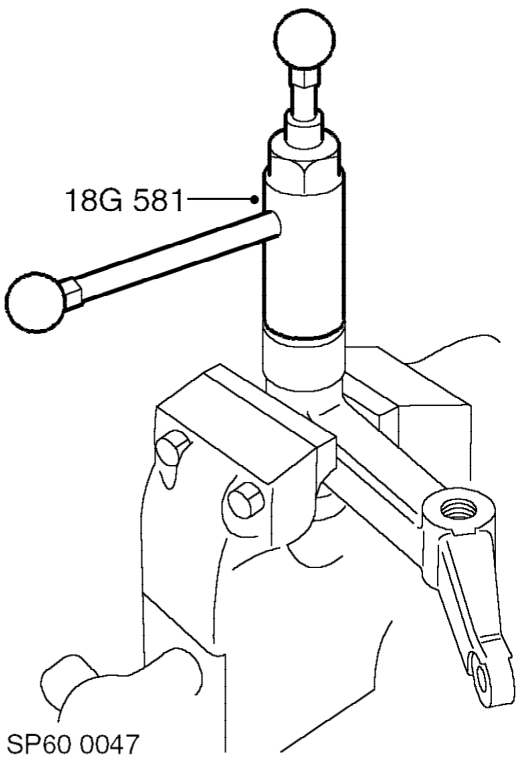

  1. Position upper suspension arm in vice.
  2. Remove needle roller bearings from upper suspension arm using 18G-581 .

CAUTION: Clean and inspect bearing housings prior to reassembly. If any wear or damage is present due to worn bearings, the suspension arm must be replaced.
