MOUNTING - FRONT SUB FRAME - FRONT

Service repair no - 60.35.80

Remove

  1. Raise front of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Mounting - front sub frame - front – Raise front of vehicle and support on stand(s).
  1. Remove bolt and nut and bolt securing front mounting to body.
  2. Remove nut and bolt securing mounting to subframe and remove mounting.

Refit

  1. Position mounting to subframe, fit bolt and nut but do not fully tighten at this stage.
  2. Fit and tighten bolts securing subframe mounting to body to 30 Nm.
  3. Tighten nut and bolt securing mounting to subframe to 100 Nm.
  4. Remove stand(s) and lower vehicle.

MOUNTING - FRONT SUB FRAME - REAR

Service repair no - 60.35.82

Remove

  1. Raise front of vehicle and support on stand(s).

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

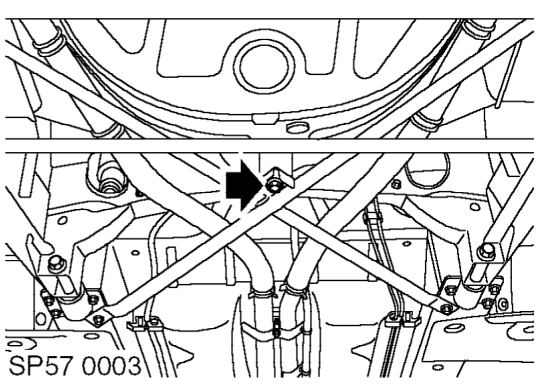

Mounting - front sub frame - rear – Raise front of vehicle and support on stand(s).
  1. Remove bolt securing cross brace to centre mounting.

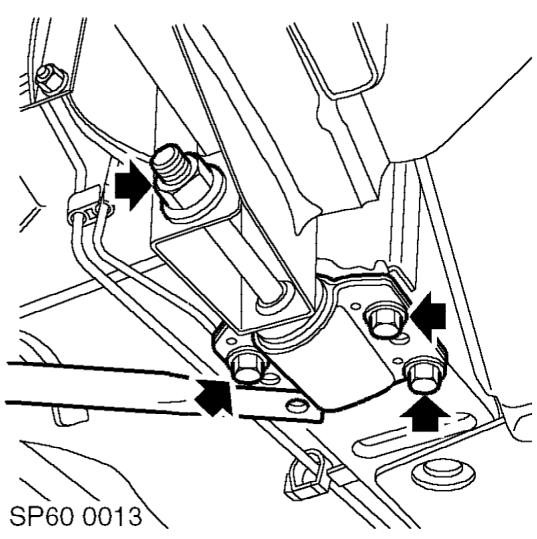

Mounting - front sub frame - rear – Remove bolt securing cross brace to centre mounting.
  1. Remove 4 bolts securing cross brace and rear subframe mounting to body.
  2. Remove nut and bolt securing mounting to subframe and remove mounting.
