MG TF Factory Workshop Manual (2002-2005)14 · Front suspension
14 · Steering & suspension

Bush - suspension lower arm - front

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs › Bush - suspension lower arm - front
Front suspensionBush - suspension lower arm - front · page 1 of 2
Diagram

Refit

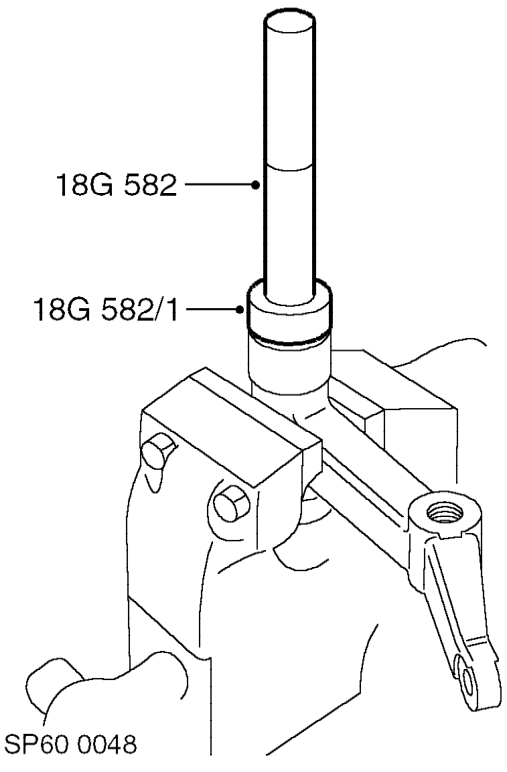

  1. Align and carefully drift new needle roller bearings into upper suspension arm using 18G 582 and 18G 582/1 .
  2. Fit upper suspension arm. See this section.
  3. Fit road wheel(s), fit wheel nuts and tighten in a diagonal sequence to 70 Nm.
  4. Remove stand(s) and lower vehicle.

BUSH - SUSPENSION LOWER ARM - FRONT

Service repair no - 60.35.24

Remove

  1. Remove front lower arm. See this section.

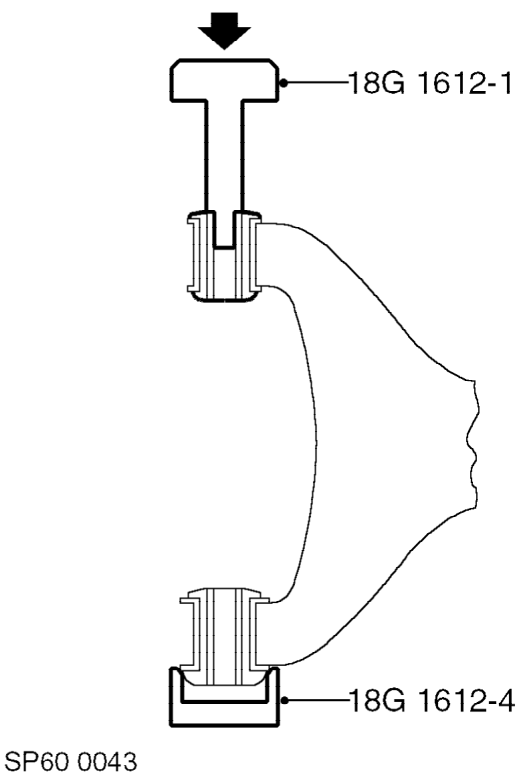

Bush - suspension lower arm - front – Remove front lower arm. See this section.
  1. Remove front bush using press, position lower arm with front bush uppermost and support with tool 18G 1612-4 under rear bush.
  2. Fit tool 18G 1612-1 to front bush and press bush from lower arm.
  3. Reposition arm under press with rear bush uppermost.
