Bush - suspension lower arm - front (page 2 of 2)

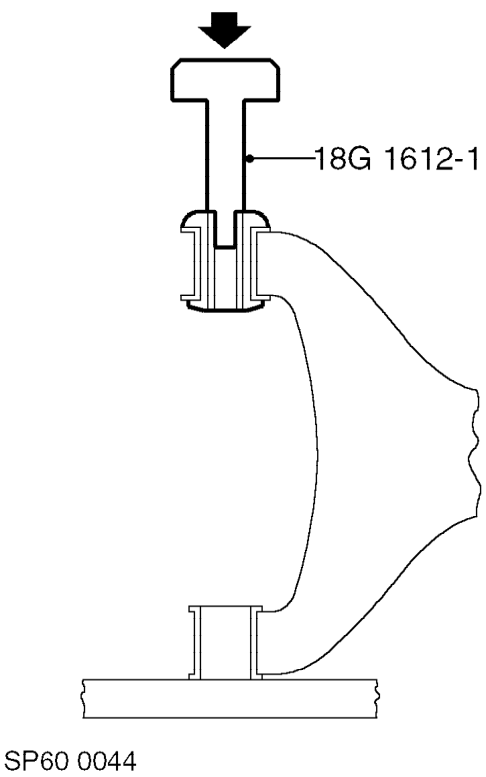

5. Fit tool 18G 1612-1 to rear bush and press bush from arm.

Refit

1. Clean lower arm and bush locations.
2. Position lower arm in press with rear bush located uppermost.
3. Lubricate rear bush with Marlene 148 rubber lubricant.
4. Fit tool 18G 1612-2 to rear bush location.

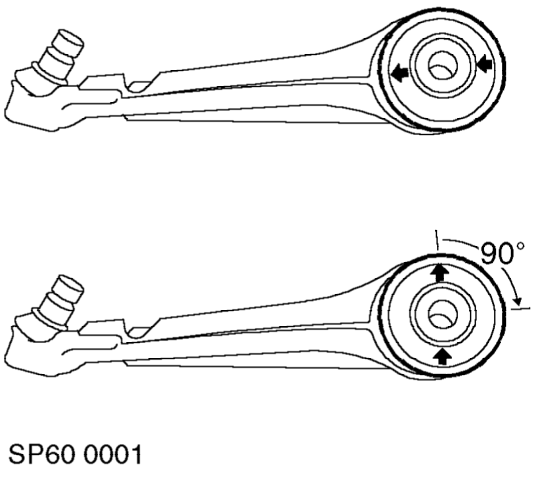

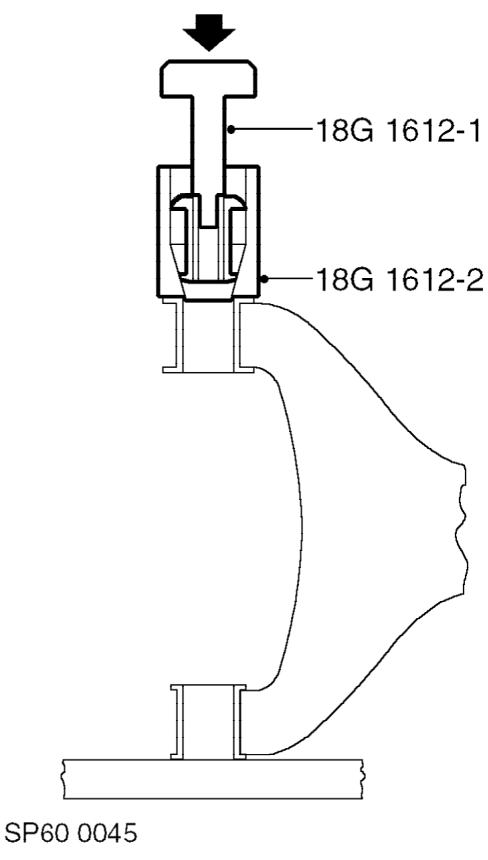

5. Fit rear bush into tool 18G 1612-2 with the rounded flange uppermost with the arrows on bush pointing 90° from ball joint.

6. Fit tool 18G 1612-1 to the rear bush and press into lower arm.
