MG TF Factory Workshop Manual (2002-2005)14 · Front suspension
14 · Steering & suspension

Suspension arm - lower front (page 2 of 3)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Front suspensionSuspension arm - lower front · page 2 of 3
Diagram

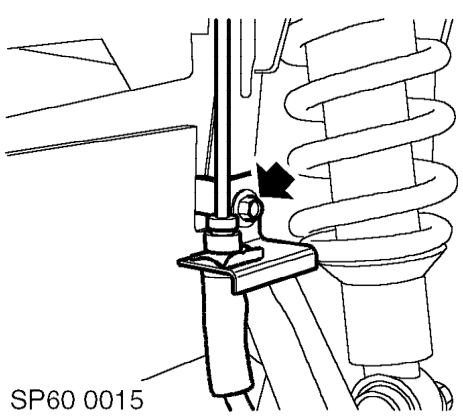

  1. Remove 2 bolts securing LH and RH brake pipe support brackets to subframe turret.
Remove 2 bolts securing LH and RH brake pipe support brackets to subframe turret.

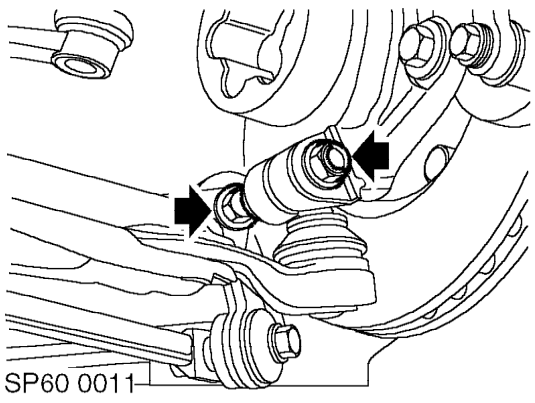

  1. Remove nut and bolt securing lower arm ball-joint to hub.

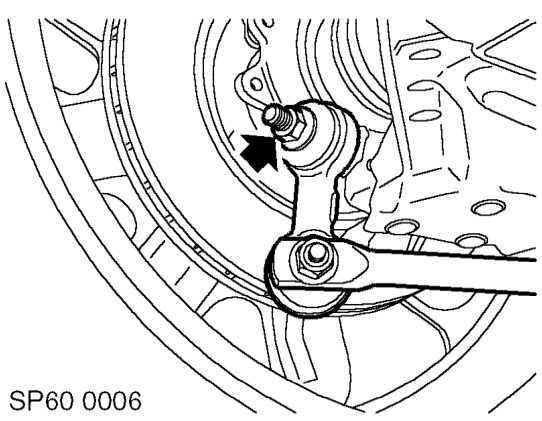

  2. Release ball-joint from lower arm.
Release ball-joint from lower arm.
  1. Remove nut and bolt securing anti-roll bar link to lower arm.
Remove nut and bolt securing anti-roll bar link to lower arm.

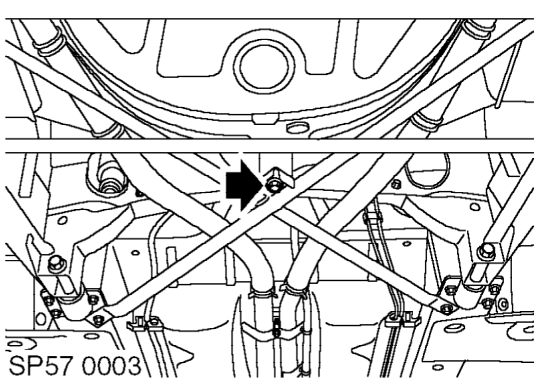

  1. Remove bolt securing cross brace to centre mounting.

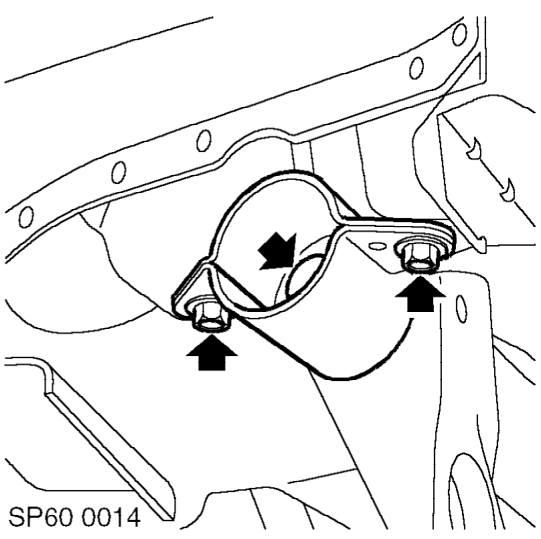

  2. Support rear of front subframe on a jack.
Support rear of front subframe on a jack.
  1. Loosen 2 bolts and 2 nuts and bolts securing front subframe mountings to body.
