MG TF Factory Workshop Manual (2002-2005)14 · Front suspension
14 · Steering & suspension

Sub frame - front suspension - manual transmission models (page 5 of 7)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Front suspensionSub frame - front suspension - manual transmission models · page 5 of 7
Diagram

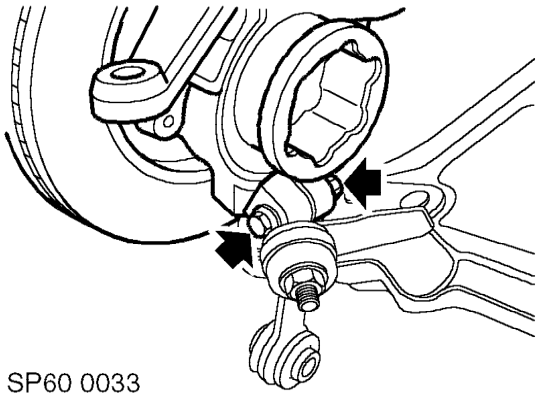

  1. Remove nut and bolt securing ball joint to lower arm, release ball joint and remove hub assembly.
Remove nut and bolt securing ball joint to lower arm, release ball joint and remove hub as

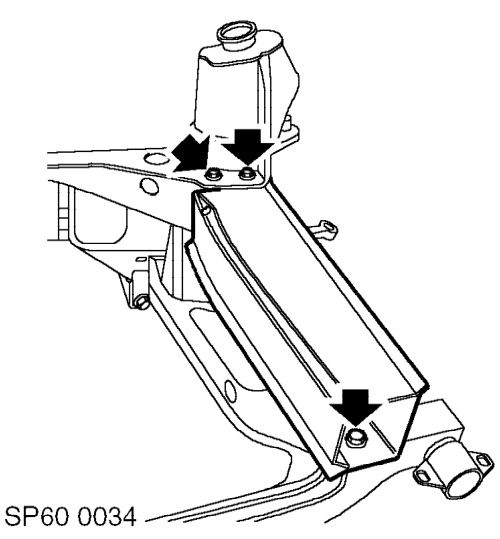

  1. Remove 3 bolts securing LH crash can to subframe and remove crash can.
Remove 3 bolts securing LH crash can to subframe and remove crash can.

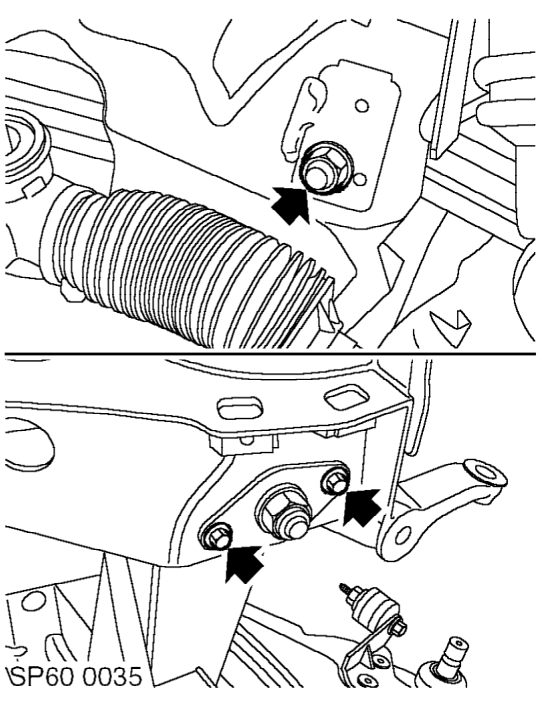

  1. Remove rear nut and plain washer securing upper suspension arm pivot shaft to subframe.
  2. Remove bolt and nut and bolt securing pivot shaft retaining plate to subframe.
  3. Remove pivot shaft from subframe.
  4. Remove upper suspension arm from subframe, noting fitted position of rear thrust washer and rubber seals at each end of suspension arm.
Remove upper suspension arm from subframe, noting fitted position of rear thrust washer an

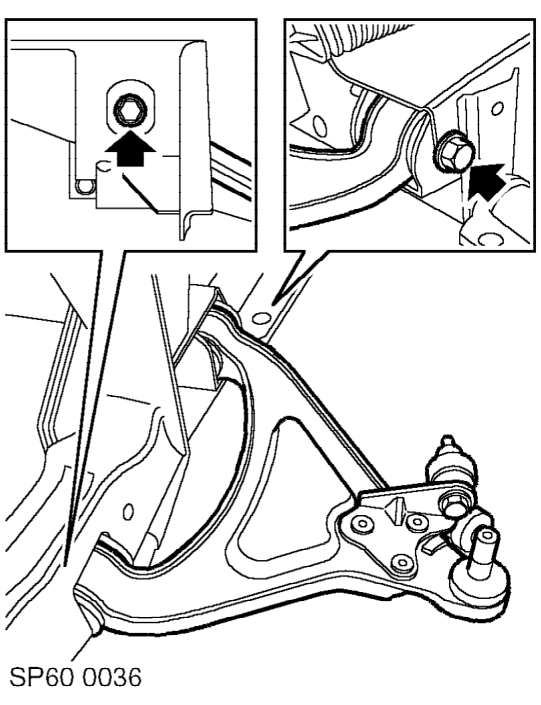

  1. Remove front and rear bolts securing lower arm to subframe and remove lower arm.
  2. Repeat operations for opposite side of suspension.
