Sub frame - front suspension - manual transmission models (page 4 of 7)

NOTE: Do not carry out further dismantling if component is removed for access only.

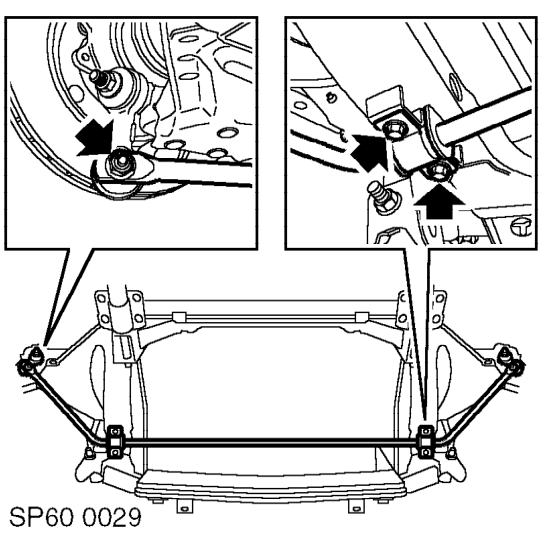

26. Remove nuts and bolts securing anti-roll bar links to anti-roll bar.
27. Remove 4 bolts securing anti-roll bar to subframe, remove anti-roll bar. Collect anti-roll bar clamps and mounting rubbers.

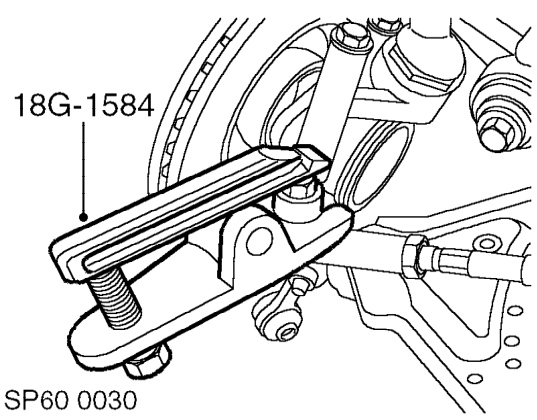

28. Remove nuts securing steering rack ball joints to front hubs. Using 18G-1584 , release ball joint tapers from hubs.

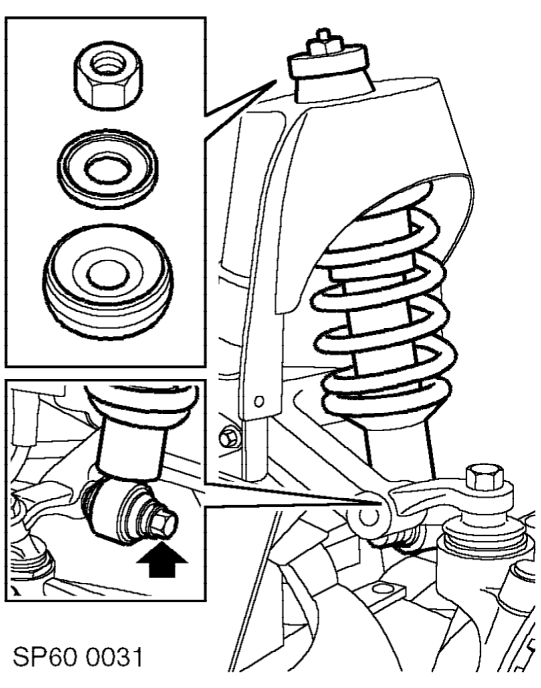

29. Position 5 mm Allen key in top of damper shaft, remove nut securing damper to subframe turret.
30. Remove retaining washer and rubber bush.
31. Remove bolt securing damper to upper suspension arm, remove damper/spring assembly and collect spring isolator.

32. Remove and discard lock nut securing ball joint to upper suspension arm.

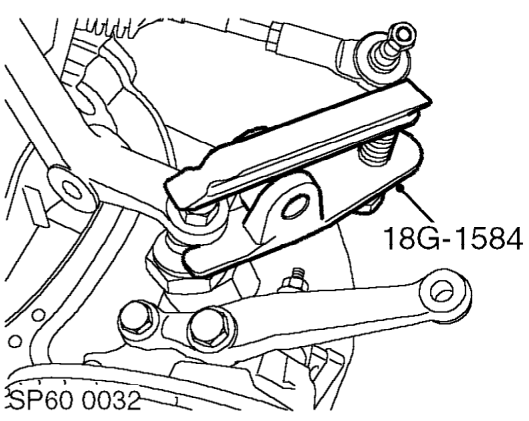

33. Fit slave nut to ball joint threads, position tool 18G-1584, release ball joint taper from upper suspension arm. Remove slave nut.
