Front suspensionSub frame - front suspension - manual transmission models · page 3 of 7

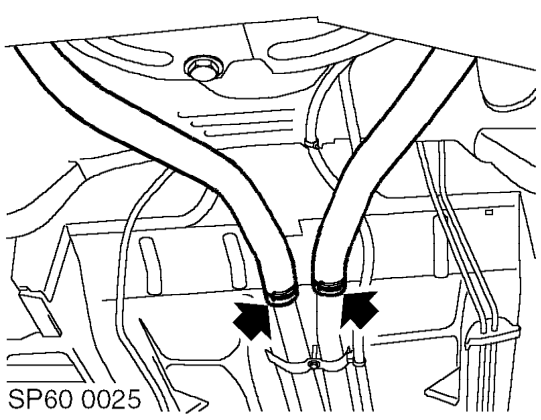

Diagram

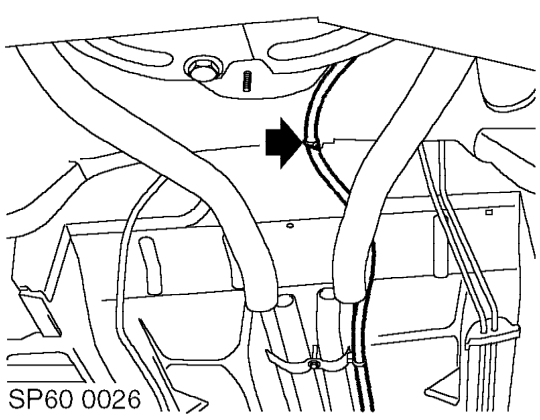

  1. Release clips and disconnect coolant hoses under floor.
Release clips and disconnect coolant hoses under floor.

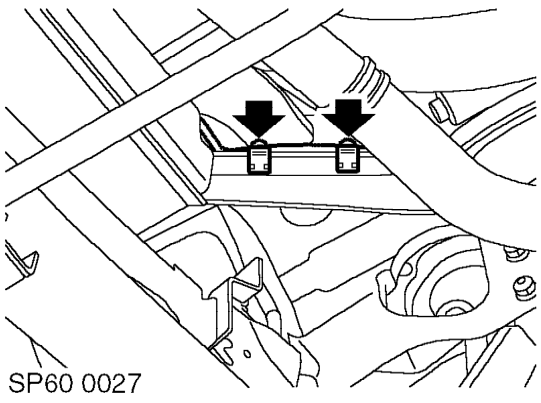

  1. Remove and discard cable tie securing battery lead to subframe, position battery lead aside.
Remove and discard cable tie securing battery lead to subframe, position battery lead asid

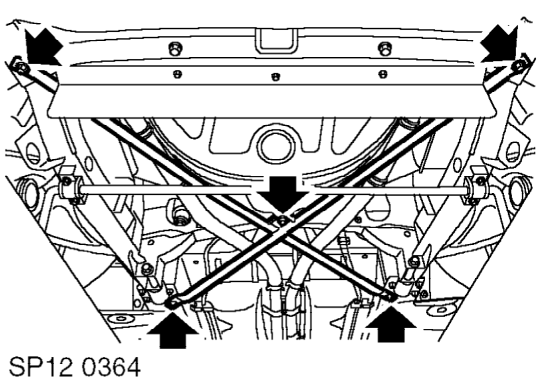

  1. Release screen washer tube from 2 clips on subframe.
Release screen washer tube from 2 clips on subframe.
  1. Remove 2 bolts securing cross brace to front of subframe.
  2. Remove LH and RH bolts securing cross brace and rear subframe mountings to body.
  3. Remove bolt securing cross brace to centre mounting and remove cross brace.
  4. Position suitable table beneath front subframe.

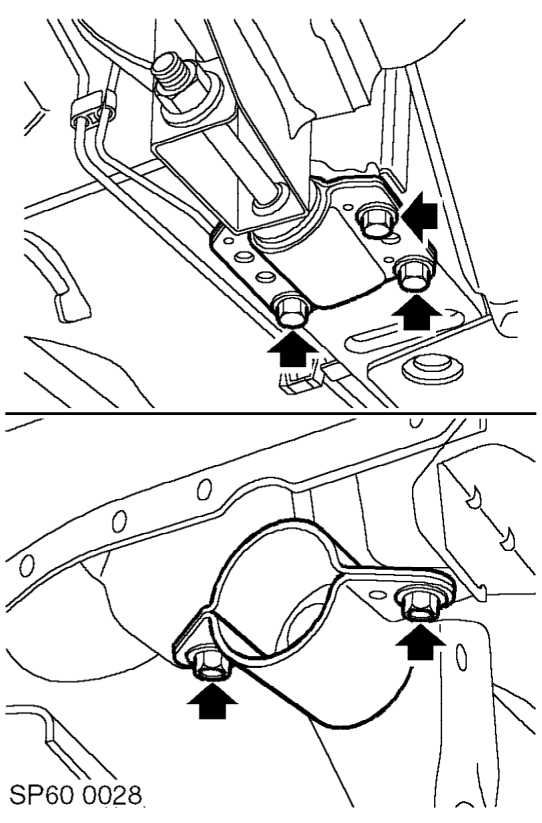

  5. Lower vehicle on ramp until subframe makes contact with table.
Lower vehicle on ramp until subframe makes contact with table.
  1. Remove 6 bolts and 2 nuts and bolts securing LH and RH subframe mountings to body.
  2. Slowly raise vehicle away from subframe.
