MG TF Factory Workshop Manual (2002-2005)14 · Front suspension
14 · Steering & suspension

Sub frame - front suspension - manual transmission models (page 2 of 7)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Front suspensionSub frame - front suspension - manual transmission models · page 2 of 7
Diagram

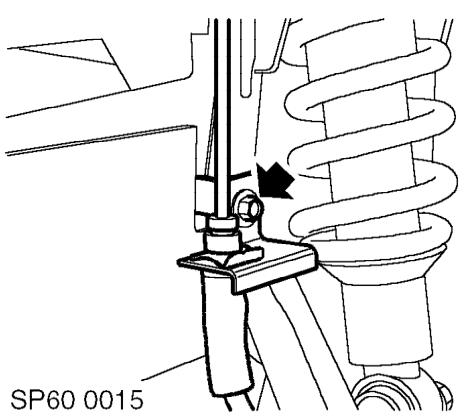

  1. Remove 2 bolts securing LH and RH brake pipe support brackets to subframe turret.
Remove 2 bolts securing LH and RH brake pipe support brackets to subframe turret.
  1. Remove bolts securing LH and RH ABS sensors to calipers. Release sensors and collect spacers.

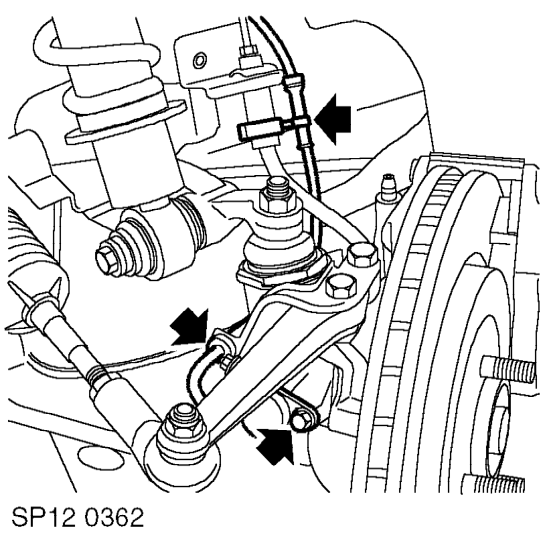

  2. Release LH and RH ABS sensor lead grommets from each bracket on front hubs, clips and grommet brackets on subframe turret.
Release LH and RH ABS sensor lead grommets from each bracket on front hubs, clips and grom

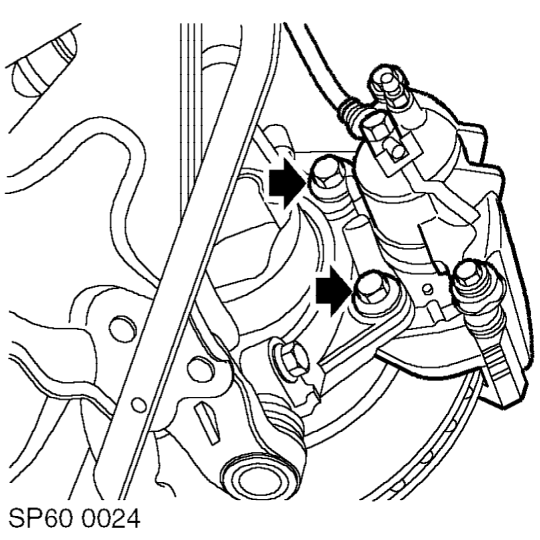

  1. Remove bolts securing LH and RH brake calipers to front hubs. Release calipers from hubs and tie calipers aside.

CAUTION: Do not allow caliper to hang on brake hose.

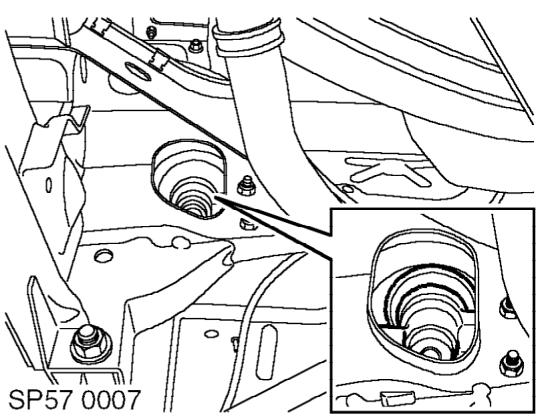

  1. Raise vehicle on ramp.
Raise vehicle on ramp.
  1. Release pinion cover from steering rack pinion housing and retaining studs.
  2. Drain cooling system. See COOLING SYSTEM, Adjustments.
