MG TF Factory Workshop Manual (2002-2005)15 · Rear suspension
15 · Steering & suspension

Damper - RH (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Rear suspensionDamper - RH · page 2 of 2

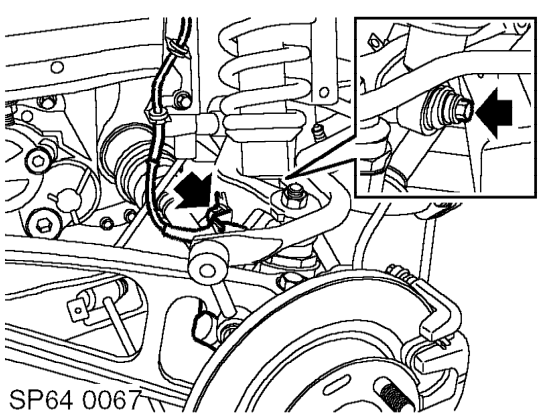

Diagram
  1. Remove nut from RH damper retaining bolt securing ABS lead support bracket and release bracket.

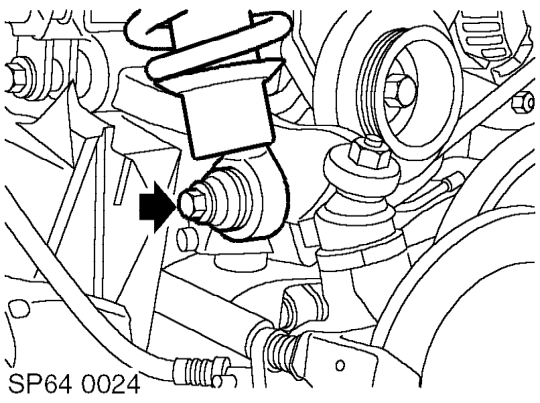

Remove nut from RH damper retaining bolt securing ABS lead support bracket and release bra
  1. Remove bolt securing damper to upper suspension arm, remove damper/spring assembly and collect spring isolator.
  2. Position damper/spring assembly in vice.

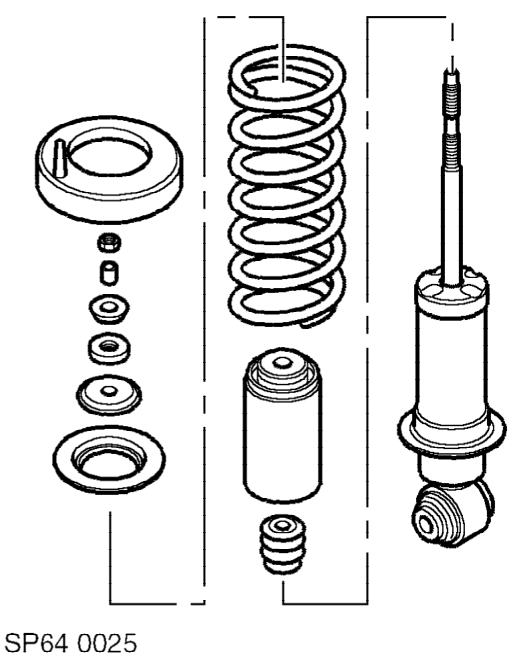

Position damper/spring assembly in vice.
  1. Progressively loosen and remove spring retainer nut, remove distance piece, flat washer, steel cup washer and spring retainer. Note fitted position of steel cup washer.
  2. Remove spring, dust shield and rebound rubber bush from damper.
  3. Remove damper from vice.
