MG TF Factory Workshop Manual (2002-2005)15 · Rear suspension
15 · Steering & suspension

Sub frame - rear suspension - manual transmission models (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
Rear suspensionSub frame - rear suspension - manual transmission models · page 2 of 2
  1. Remove retaining washer and rubber bush.

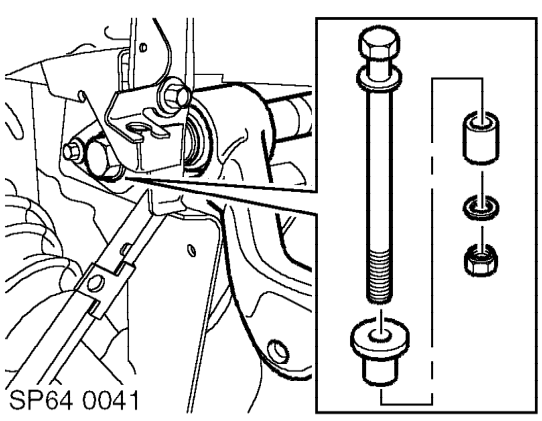

  2. Remove bolt securing damper to upper suspension arm, remove damper/spring assembly and collect spring isolator.
Remove bolt securing damper to upper suspension arm, remove damper/spring assembly and col

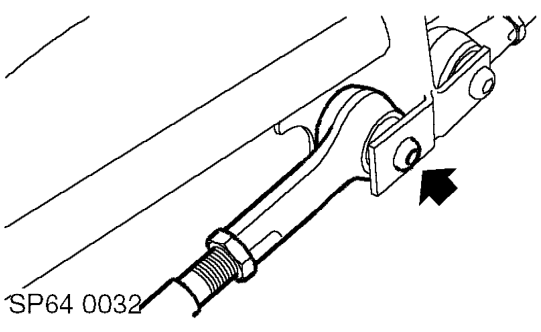

  1. Remove nut and bolt securing upper arm to subframe.
  2. Noting the position of spacers, remove upper arm and spacers.
Noting the position of spacers, remove upper arm and spacers.

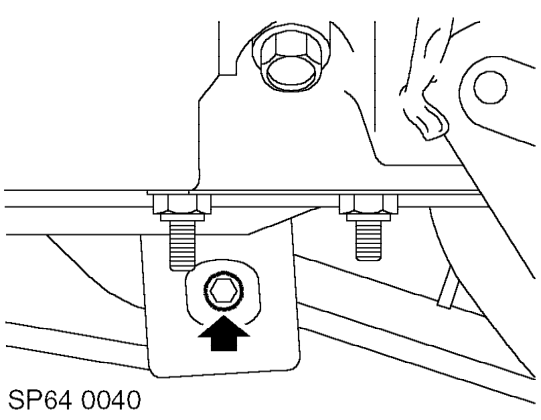

  1. Remove torx bolt securing track control arm to subframe and remove track control arm.
Remove torx bolt securing track control arm to subframe and remove track control arm.

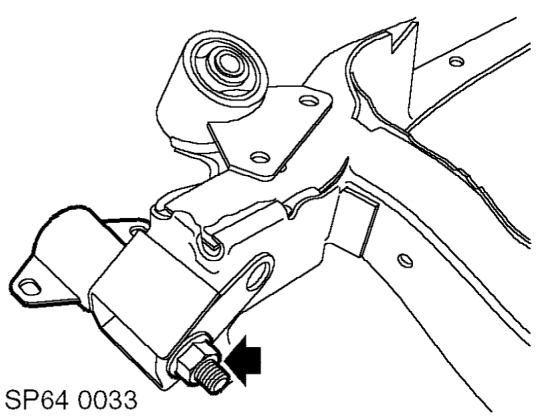

  1. Remove access grommet and remove bolt securing lower link to subframe.
  2. Noting the fitted position remove lower link.
  3. Collect lower link bush spacer.
  4. Repeat operations for opposite side of suspension.
Repeat operations for opposite side of suspension.

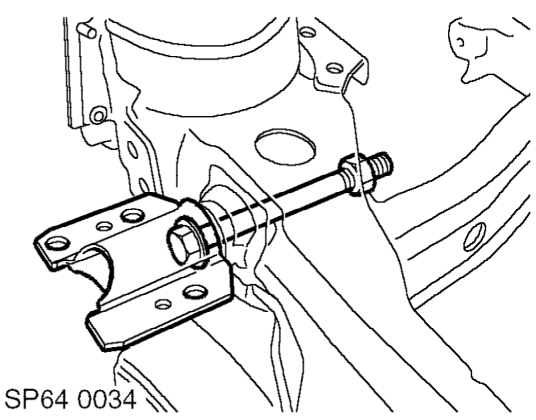

  1. Remove nut and bolt securing front mounting to subframe and collect mounting.
Remove nut and bolt securing front mounting to subframe and collect mounting.
  1. Remove nut and bolt securing rear mounting to subframe and collect mounting.
  2. Repeat operations for opposite side of suspension.
Repeat operations for opposite side of suspension.

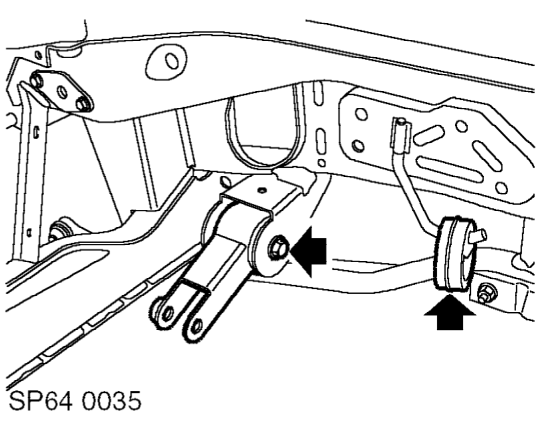

  1. Remove bolt securing rear engine mounting tie-rod to subframe and collect tie-rod.
  2. Remove exhaust mounting rubber from subframe.
