8.4. Master Brake Cylinder

8.4. Master Brake Cylinder

Master cylinders of different diameter are used within the range covered. Always make sure that the correct cylinder or the correct repair kit for the cylinder in question is used.

8.4.0. REMOVAL AND INSTALLATION

The removal and installation of the cylinder is a fairly easy operation. The cylinder is bolted to the front face of the brake servo unit.

• Remove the two connector plugs from the brake fluid warning switch.

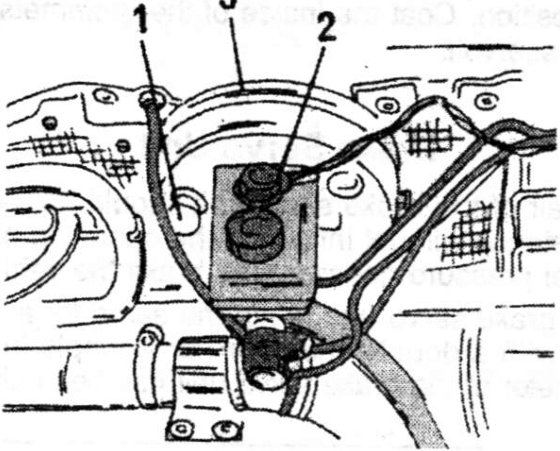

• Unscrew the brake pipe union nuts, withdraw the pipes and carefully bend the pipes to one side. Fig. 8.16 shows a view of the fitted cylinder. The shape of the cylinder can be different, depending on the vehicle model. To reach some of the connections it may be necessary to remove the spare wheel.
• Remove the two nuts securing the cylinder to the front face of the brake servo unit and carefully remove the cylinder. Take

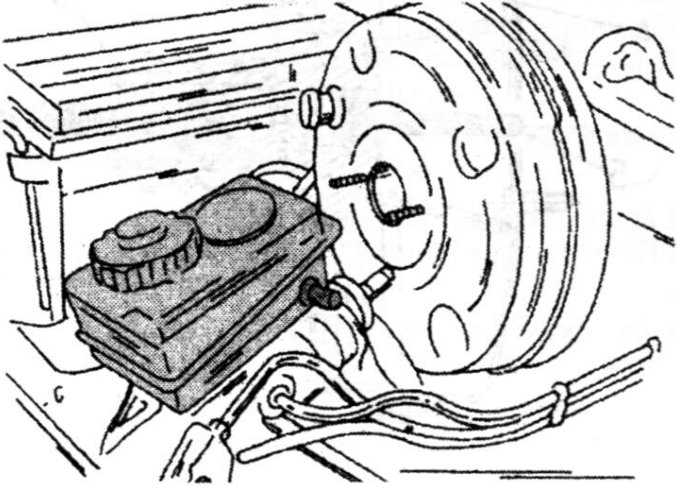

care not to drip brake fluid on painted surfaces. Hold a rag underneath the cylinder and lift it out at the angle shown in Fig. 8.17.
