Rover 200 Workshop Manual (1995-1999)20 · Automatic gearbox
20 · Transmission

Primary cover (page 2 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Automatic gearboxPrimary cover · page 2 of 5
Diagram

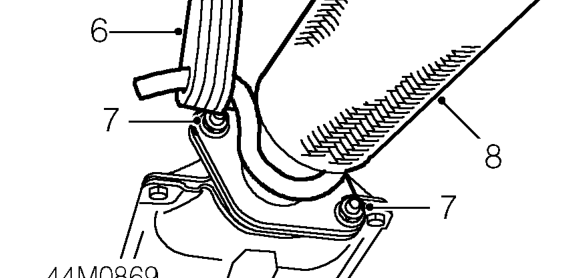

  1. Disconnect rubber mounting securing front pipe to body.
  2. Remove 2 nuts securing front pipe to catalytic converter.
  3. Disconnect front pipe from catalytic converter and remove flange gasket.
  4. Position container to collect fluid loss from gearbox.
Position container to collect fluid loss from gearbox.

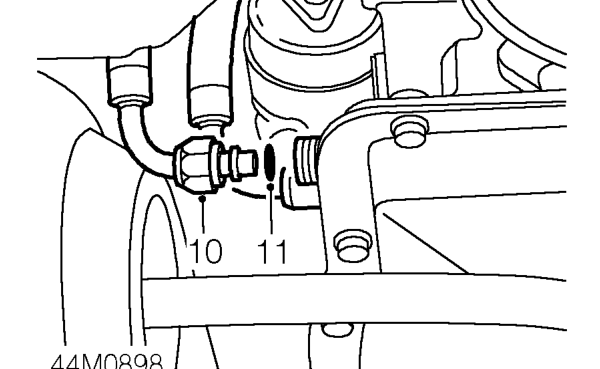

  1. Loosen unions and disconnect 2 fluid cooler hoses from gearbox.
  2. Remove and discard ’O’ rings from fluid cooler hose unions.
Remove and discard ’O’ rings from fluid cooler hose unions.

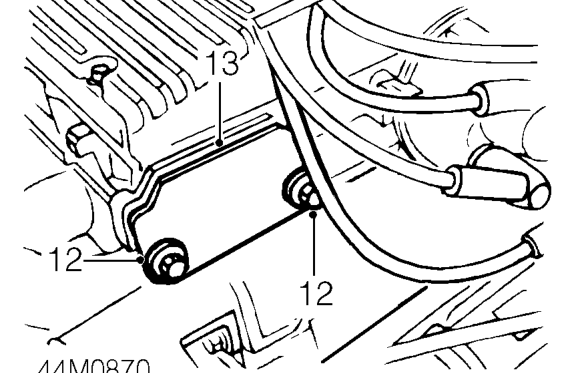

  1. Remove 2 bolts securing camshaft rear cover plate to cylinder head.
  2. Remove camshaft rear cover plate.
Remove camshaft rear cover plate.

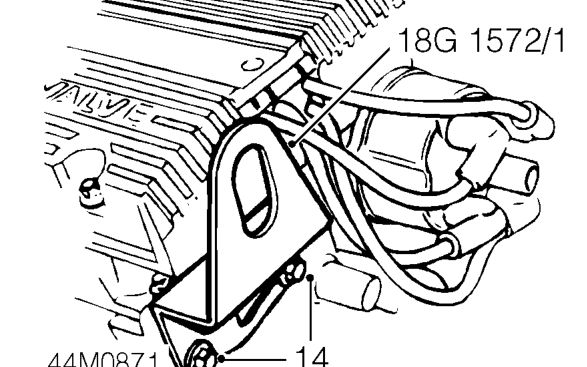

  1. Fit lifting bracket to 18G 1572/1 to cylinder head. Fit bolts and tighten to 9 Nm.
