Rover 200 Workshop Manual (1995-1999)20 · Automatic gearbox
20 · Transmission

Primary cover (page 4 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Automatic gearboxPrimary cover · page 4 of 5
Diagram

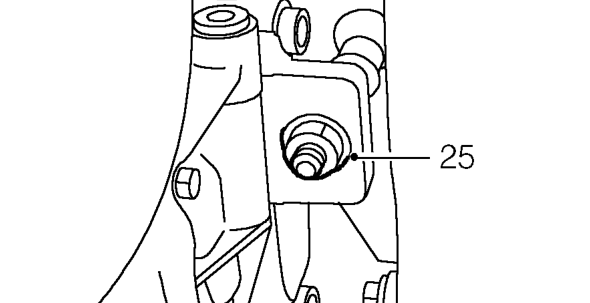

  1. Remove and discard nut securing gearbox mounting bracket to engine mounting.
  2. Adjust tool 18G 1598 to tilt engine with gearbox as low as possible.
Adjust tool 18G 1598 to tilt engine with gearbox as low as possible.

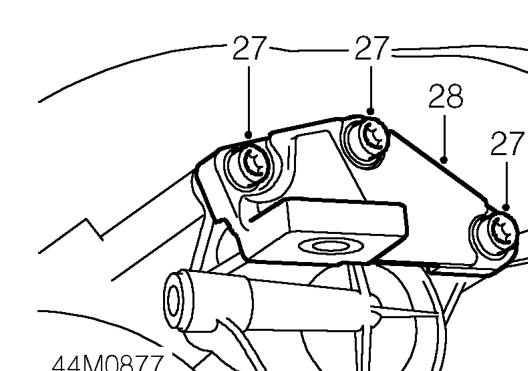

  1. Remove 3 Tx55 Torx bolts securing mounting bracket to gearbox.
  2. Remove mounting bracket from gearbox.
Remove mounting bracket from gearbox.

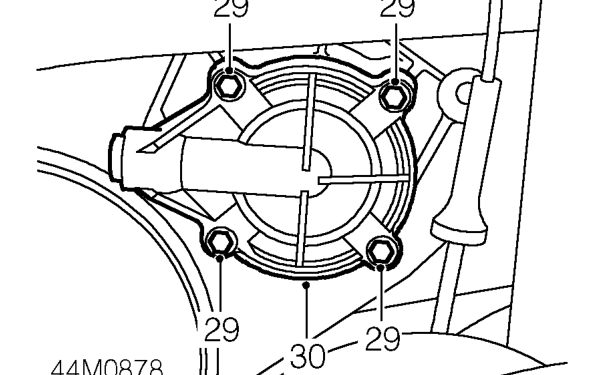

  1. Remove 4 bolts securing secondary cover to gearbox.
  2. Remove secondary cover.
Remove secondary cover.

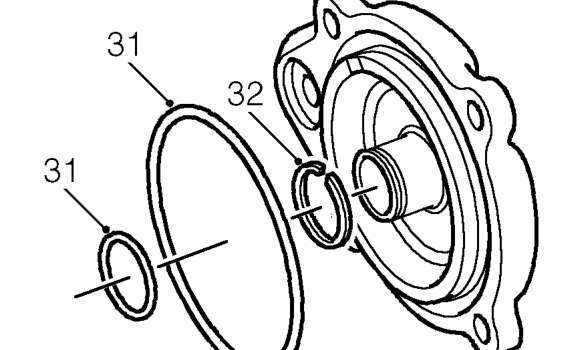

  1. Remove and discard 2 ’O’ rings from cover.
  2. Remove and discard split ring.
