Rover 200 Workshop Manual (1995-1999)20 · Automatic gearbox
20 · Transmission

Primary cover (page 3 of 5)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Automatic gearboxPrimary cover · page 3 of 5
Diagram

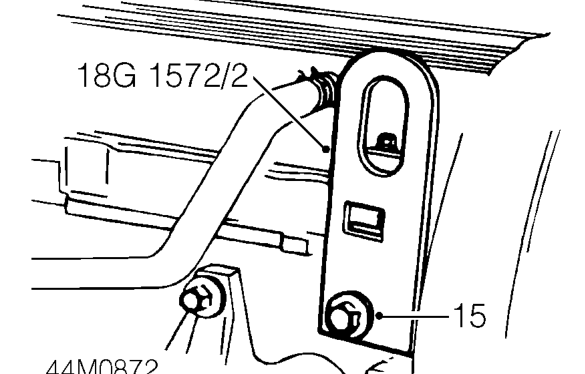

  1. Fit lifting bracket tool 18G 1572/2 to cylinder head and tighten bolt to 9 Nm.
Fit lifting bracket tool 18G 1572/2 to cylinder head and tighten bolt to 9 Nm.

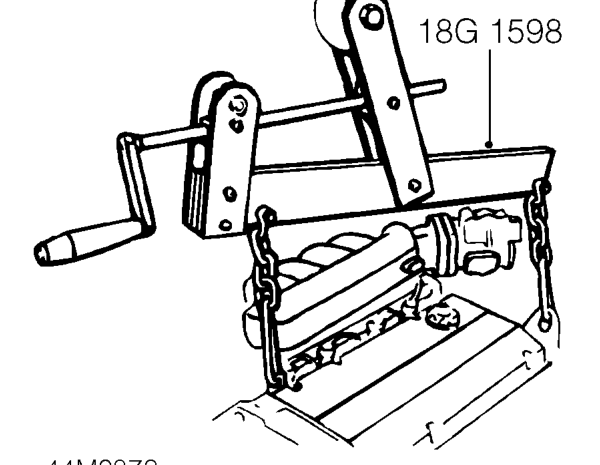

  1. Connect adjustable lifting bracket tool 18G 1598 to lifting brackets.
  2. Connect hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect hoist to tool 18G 1598 and raise hoist to take weight of engine without exerting l

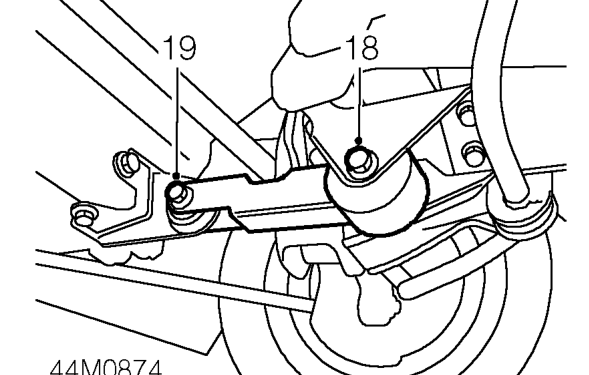

  1. Loosen through bolt securing engine steady bar to body.
  2. Remove through bolt securing engine steady bar to bracket on sump.
Remove through bolt securing engine steady bar to bracket on sump.

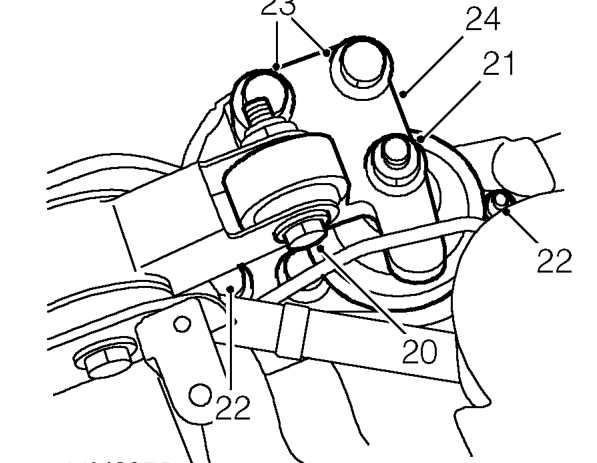

  1. Remove bolt securing RH steady bar to engine mounting bracket.
  2. Remove nut securing mounting bracket to engine mounting.
  3. Loosen 2 nuts securing engine mounting restraint bar to body.
  4. Remove 2 bolts securing mounting bracket to engine.
  5. Remove engine mounting bracket.
