Headlining with sun roof (page 2 of 2)

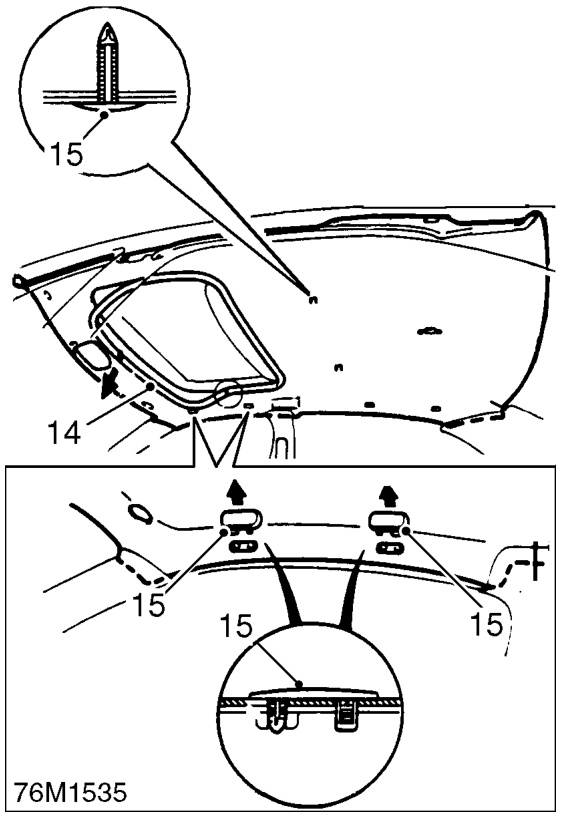

14. Release finisher from sun roof aperture.
15. Remove 2 studs and 2 grab handle blanks and remove headlining from the taildoor aperture.

NOTE: Take care not to bend headlining on removal and refitting.

Refit

1. With assistance position headlining to roof. Fit studs and grab handle blanks to secure headlining.
2. Fit sun roof finisher to headlining.
3. Fit rear finisher to headlining.
4. Position alarm sensor and connect multiplug.
5. Fit grab handles, tighten screws and fit screw covers.
6. Fit sun visors and clips. Fit and tighten screws.
7. Refit roof lamp. See ELECTRICAL, Repairs.
8. Refit ’D’/’E’ post finishers. See this section.
9. Refit ’B’ post upper finishers. See this section.
10. Refit ’A’ post finishers. See this section.
11. Secure sealing rubbers to the top of each door aperture.
