Cylinder head gasket (page 2 of 5)

Make

Rover

Model

400 Workshop Manual Supplement

Year

1999

Section

Repairs

Engine - K SeriesCylinder head gasket · page 2 of 5

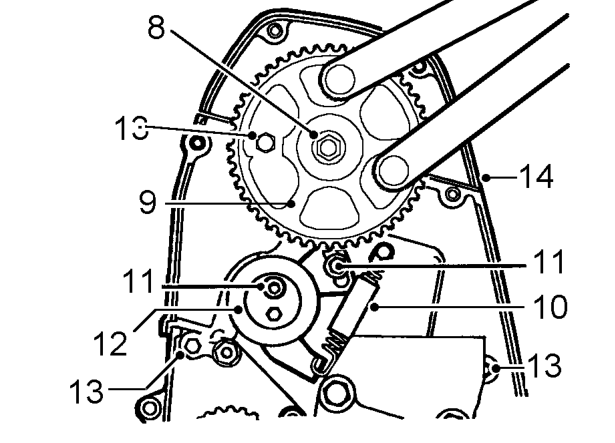

8. Restrain camshaft gear using tool 12-182 and remove bolt and washer securing camshaft gear to camshaft.
9. Remove camshaft gear.
10. Remove camshaft timing belt tensioner spring.
11. Remove timing belt tensioner centre Allen bolt and backplate screw.
12. Remove camshaft timing belt tensioner.
13. Remove 3 bolts securing camshaft timing belt rear cover.
14. Remove camshaft timing belt rear cover.

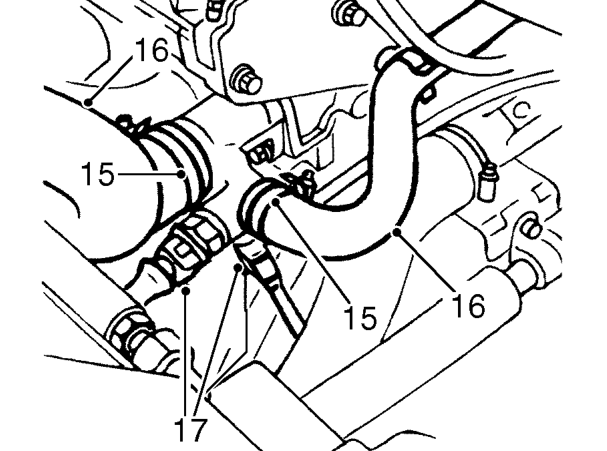

15. Loosen clips securing coolant hoses to coolant outlet elbow.
16. Disconnect coolant hoses from outlet elbow.
17. Disconnect multiplugs from coolant sensors on outlet elbow.

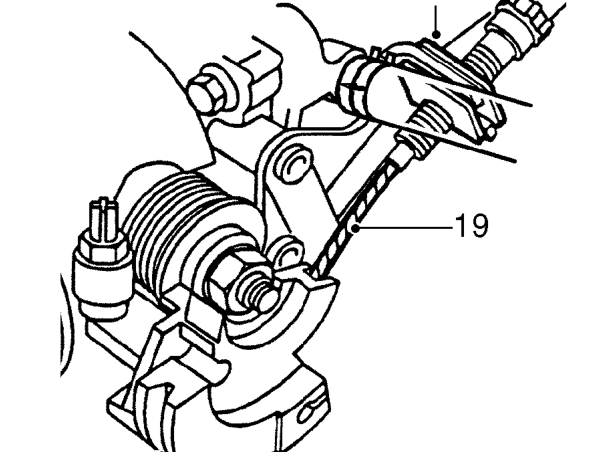

18. Release throttle cable adjustment nut from abutment bracket.
19. Release throttle cable from throttle cam.

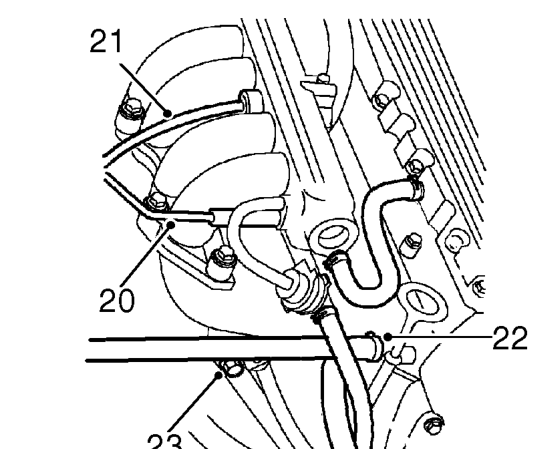

20. Disconnect ECM vacuum pipe from inlet manifold.
21. Depress plastic collar on quick release connector and disconnect brake servo vacuum hose from inlet manifold.
22. Loosen clip securing coolant hose to inlet manifold and disconnect hose.
23. Remove bolt securing engine steady bar to inlet manifold.
