Rover 400 Workshop Manual Supplement (1999)04 · Engine - K Series
04 · Engine

Cylinder head gasket (page 3 of 5)

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs
Engine - K SeriesCylinder head gasket · page 3 of 5

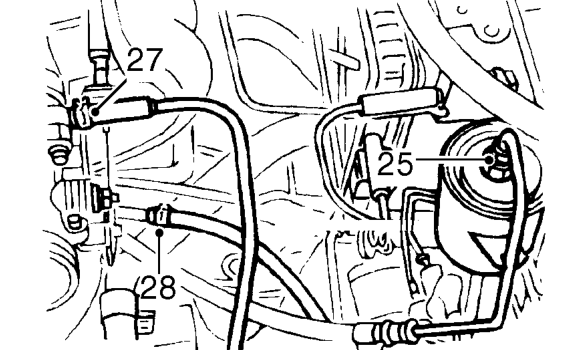

  1. Position absorbent cloth around fuel filter outlet union.
Position absorbent cloth around fuel filter outlet union.
  1. Loosen fuel filter outlet union to relieve fuel pressure.
  2. Re-tighten union to 30 Nm.

CAUTION: To prevent damage to fuel system pipes or components, use two spanners when loosening or tightening unions.

  1. Release clip securing evaporative emission canister vacuum pipe to inlet manifold and disconnect pipe.
  2. Release clip securing fuel return hose to fuel rail and disconnect hose.

CAUTION: Plug the connections.

Release clip securing fuel return hose to fuel rail and disconnect hose.
  1. Remove 2 bolts securing fuel feed hose adapter to fuel rail.
  2. Disconnect adapter from fuel rail and discard ’O’ ring.

CAUTION: Plug the connections.

Disconnect adapter from fuel rail and discard ’O’ ring.

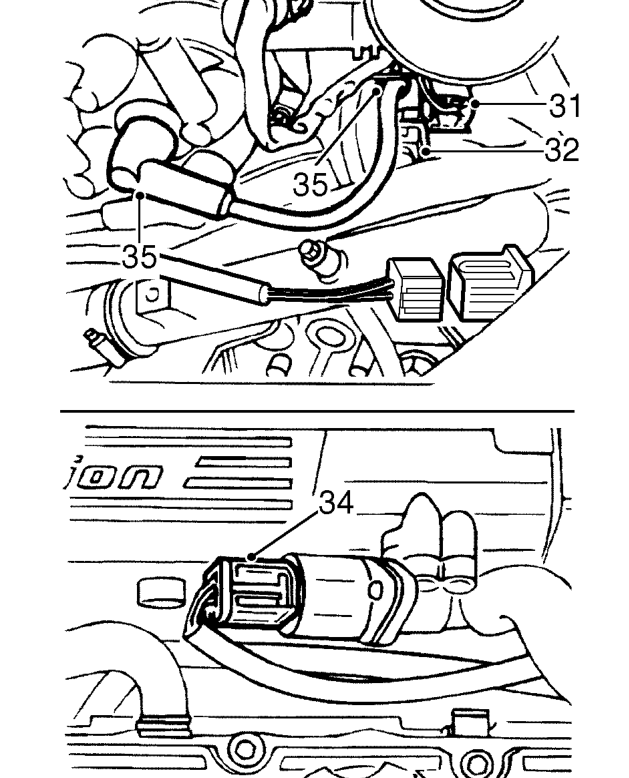

  1. Release injector harness multiplug from bracket on throttle body. Disconnect multiplug.
  2. Disconnect multiplug from IAT sensor.
  3. Disconnect multiplug from TP sensor.
  4. Disconnect multiplug from IACV and release IACV harness clip from bracket.
  5. Disconnect coil h.t. lead from distributor and release lead from clip.
