Engine - K SeriesCylinder head gasket · page 4 of 5
  1. Remove camshaft cover. See this section.
Remove camshaft cover. See this section.

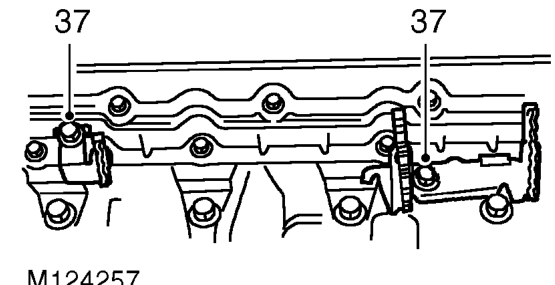

  1. Remove 2 bolts securing both h.t. lead guide brackets to cylinder head.
  2. Remove guide brackets.
Remove guide brackets.

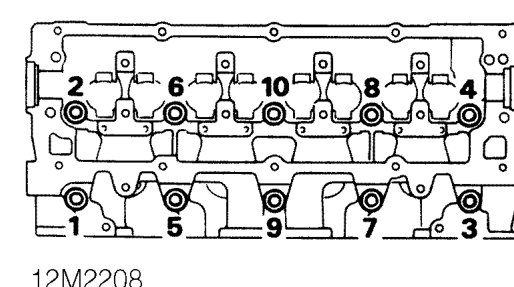

  1. Remove 10 cylinder head bolts in sequence shown and store in fitted order.
  2. Using assistance, remove cylinder head assembly from cylinder block.
  3. Remove cylinder head gasket from cylinder block and discard.
Remove cylinder head gasket from cylinder block and discard.

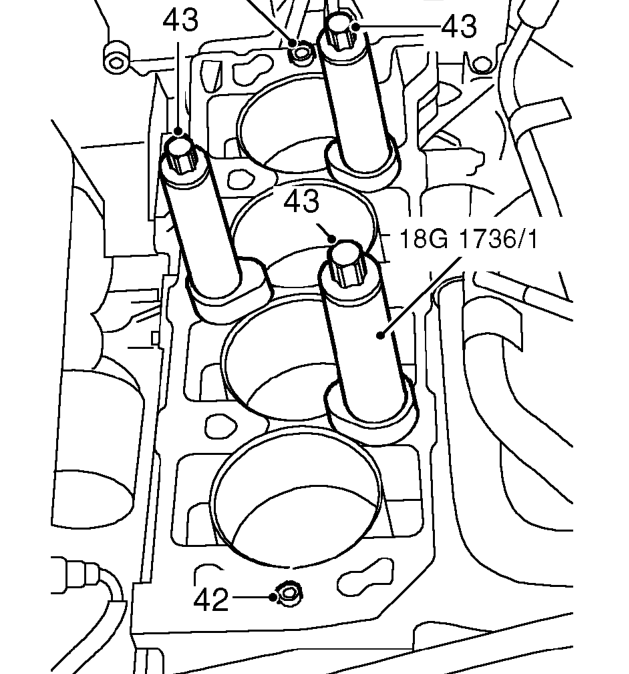

  1. Remove 2 location dowels from cylinder block.
  2. Fit cylinder liner clamps 18G 1736/1 to cylinder block and secure with cylinder head bolts.

CAUTION: Do not rotate crankshaft with cylinder head removed. Place cylinder head on blocks of wood to avoid damaging valves.
