ARM REST REAR SEAT - 4 DOOR

Service repair no - 78.10.07/99

Remove

  1. Lower the arm rest.

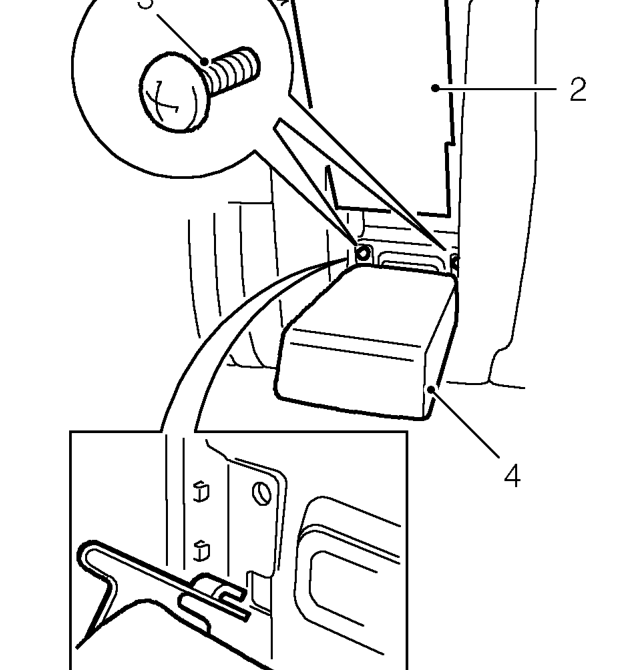

Arm rest rear seat - 4 door – Lower the arm rest.
  1. Remove arm rest backing board.
  2. Remove 2 screws securing arm rest to squab frame.
  3. Remove arm rest.

Refit

  1. Position arm rest to squab frame and secure with screws.
  2. Fit arm rest backing board.
  3. Fold up arm rest.

REAR SEAT CUSHION - 4 DOOR

Service repair no - 78.10.17/99

Remove

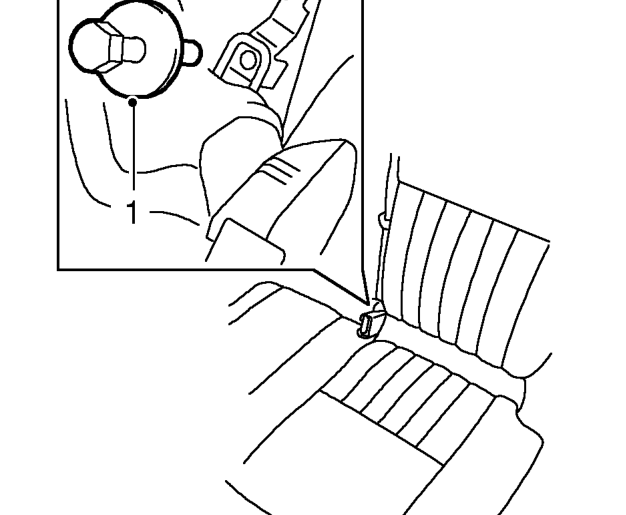

Rear seat cushion - 4 door – Service repair no - 78.10.17/99
  1. Remove bolt securing rear seat cushion to body.
  2. Release rear edge of cushion from beneath squab.

NOTE: Carefully guide seat belt buckles through seat cushion when lifting from squab.

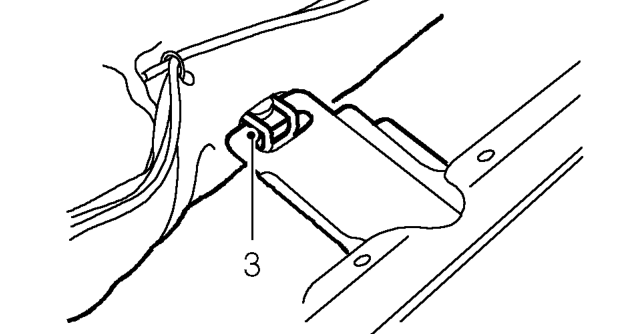

Rear seat cushion - 4 door – Release rear edge of cushion from beneath squab.
  1. Remove rear seat cushion from front fixings.
