FRONT SEAT LUMBAR SUPPORT MECHANISM

Service repair no - 78.60.07

Remove

  1. Remove front seat. See this section.
Front seat lumbar support mechanism – Remove front seat. See this section.

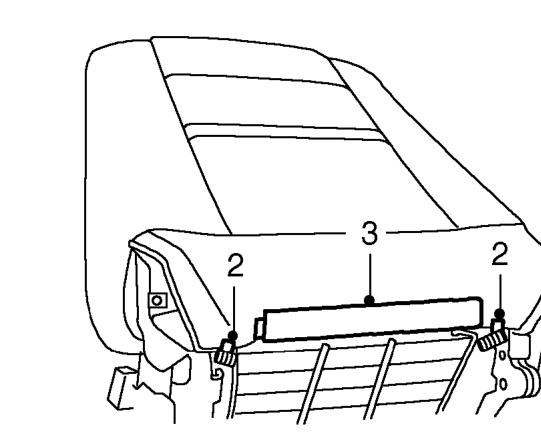

  1. Remove 2 edge clips securing cover to frame.
  2. Release squab cover retainer from seat frame.
Front seat lumbar support mechanism – Release squab cover retainer from seat frame.

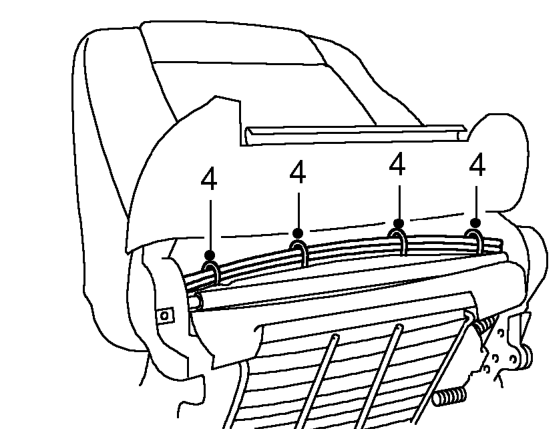

  1. Remove 4 hog rings securing squab cover edge.
Front seat lumbar support mechanism – Remove 4 hog rings securing squab cover edge.

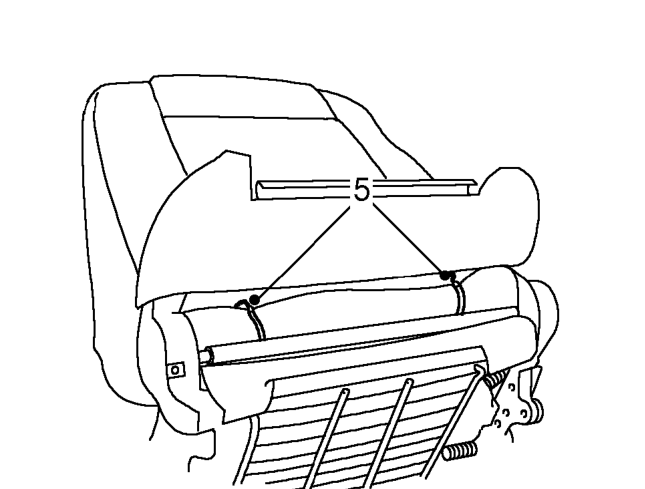

  1. Release 2 cover hooks from frame rear bar.
  2. Peel squab cover back to reveal lumbar mechanism.
  3. Ensure lumbar mechanism is fully released.
  4. Remove lumbar mechanism cover.
Front seat lumbar support mechanism – Remove lumbar mechanism cover.

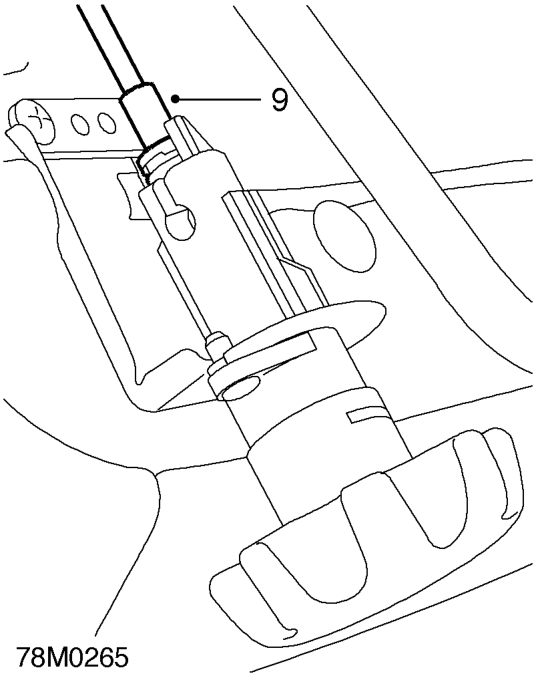

  1. Release outer cable from adjuster hand wheel.
  2. Release inner cable from adjuster hand wheel.
  3. Remove 2 straps securing cable to seat frame.
