Front seat belt and stalk

FRONT SEAT BELT AND STALK

Service repair no - 76.73.13

Remove

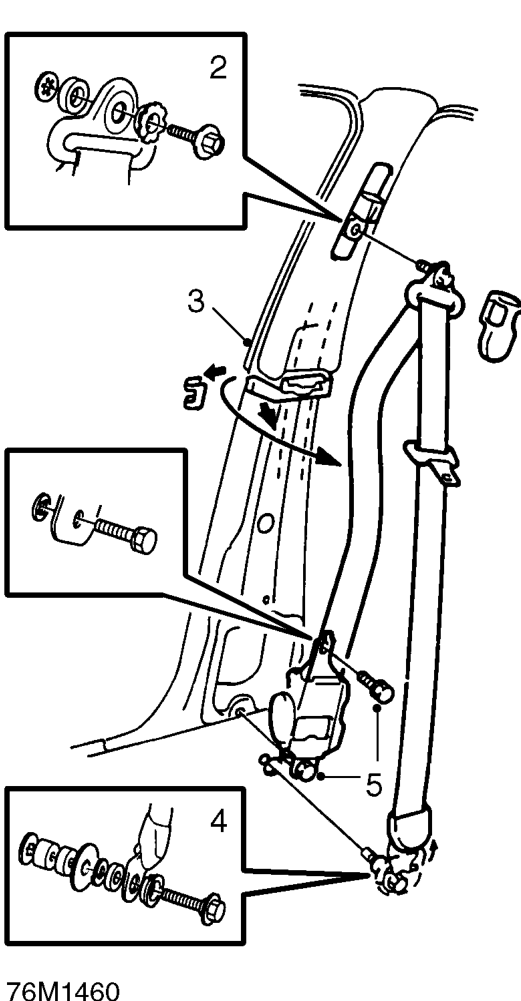

1. Remove ’B’ post lower finisher. See Interior trim components.

2. Remove seat belt upper bolt cover and remove bolt.
3. Remove clip, upper finisher to ’B’ post and release seat belt from finisher.
4. Release cover from seat belt lower bolt and remove bolt.
5. Remove 2 bolts seat belt reel to ’B’ post and remove reel.

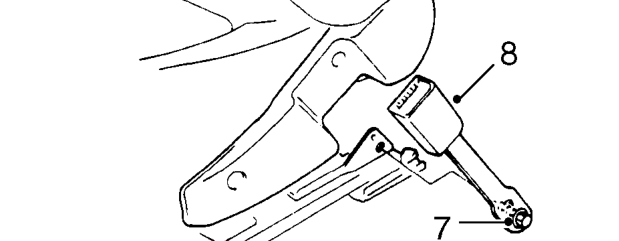

6. Remove front seat. See this section.

7. Remove bolt securing seat belt stalk to seat.
8. Remove seat belt stalk.

Refit

1. Position stalk to seat, tighten bolt to 32 Nm.
2. Fit front seat. See this section.
3. Fit reel assembly and tighten bolts, top to 9 Nm and lower to 32 Nm.
4. Extend belt from reel and attach to upper mounting point, tighten bolt to 32 Nm and fit bolt cover.
5. Ensure belt is fitted under ’B’ post upper finisher and fit finisher clip.
6. Position belt to lower mounting point tighten bolt to 32 Nm. Fit bolt cover.
7. Fit ’B’ post lower finisher. See Interior trim components.
