REAR SEAT SQUAB - DIVIDED

Service repair no - 78.10.58/99

Remove

Rear seat squab - divided – Service repair no - 78.10.58/99

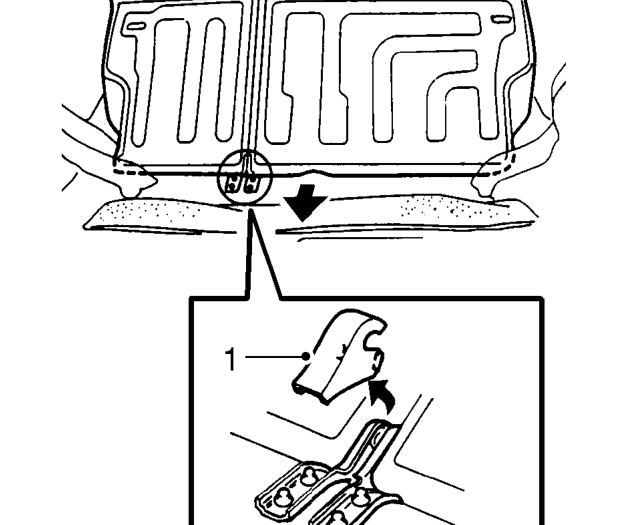

  1. Fold forward rear seat squab and remove cover from centre hinge.
Rear seat squab - divided – Fold forward rear seat squab and remove cover from centre hinge.

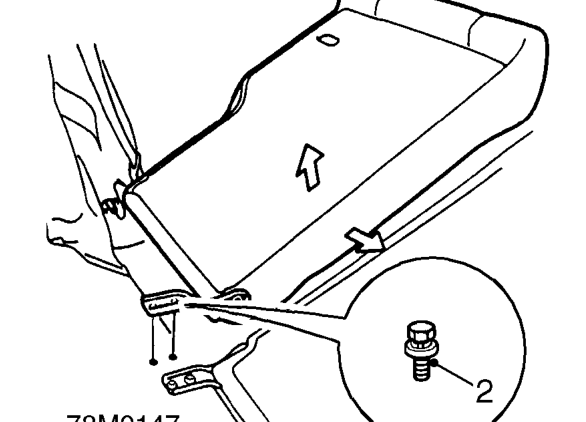

  1. Remove 2 bolts securing squab hinge to floor.
  2. Release squab from outer hinge pin and remove squab.

Refit

  1. Position squab to outer hinge pin.
  2. Fit bolts squab hinge to floor, tighten to 10 Nm. Latch to squab bolts 6 Nm.
  3. Fit hinge cover, raise and secure seat squab.
