Rover 400 Workshop Manual (1995-2000)26 · Body
26 · Body & interior

Rear seat belt - side - 4 door

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Seats and seat belts › Rear seat belt - side - 4 door
BodyRear seat belt - side - 4 door · page 1 of 2

Refit

  1. Position centre seat belt reel to parcel tray panel, fit bolt and tighten to 32 Nm.
  2. Feed seat belt strap through parcel tray.
  3. Position parcel tray and secure with trim fixings.
  4. Fit centre seat belt guide to belt and secure to parcel tray.
  5. Fit NEW seat belt buckle to floor, align strap and secure with bolts tightened to 32 Nm.
  6. Fit both ’D’ post upper trim finishers. See Interior trim components.
  7. Fit rear seat cushion. See this section.
  8. Fit both rear speakers. See ELECTRICAL, Repairs.

REAR SEAT BELT - SIDE - 4 DOOR

Service repair no - 76.73.23

Remove

  1. Remove ’D’ post lower trim finisher. See Interior trim components.
  2. Remove both ’D’ post upper trim finishers. See Interior trim components.
  3. Remove both rear speakers. See ELECTRICAL, Repairs.

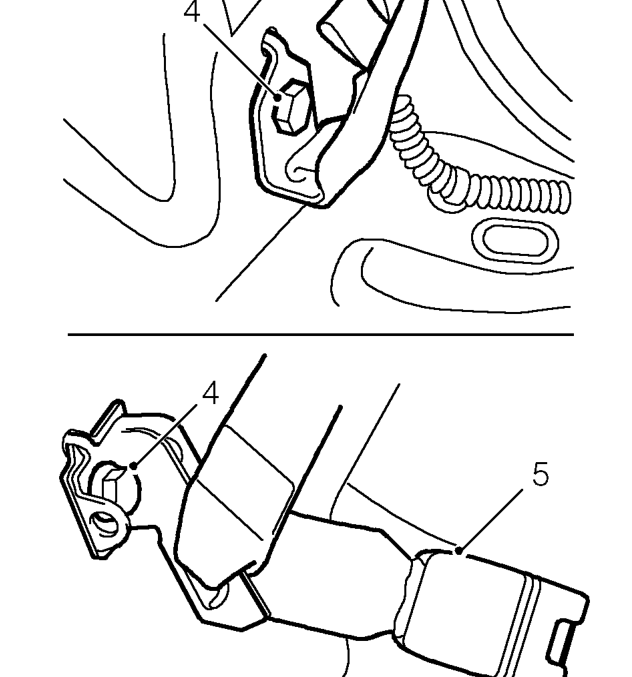

Rear seat belt - side - 4 door – Remove both rear speakers. See ELECTRICAL, Repairs.
  1. Remove 2 bolts securing seat belt buckle and belt to floor.
  2. Remove seat belt buckle.
