INNER VALANCE - FRONT CUSHION SIDE

Service repair no - 78.30.46

Remove

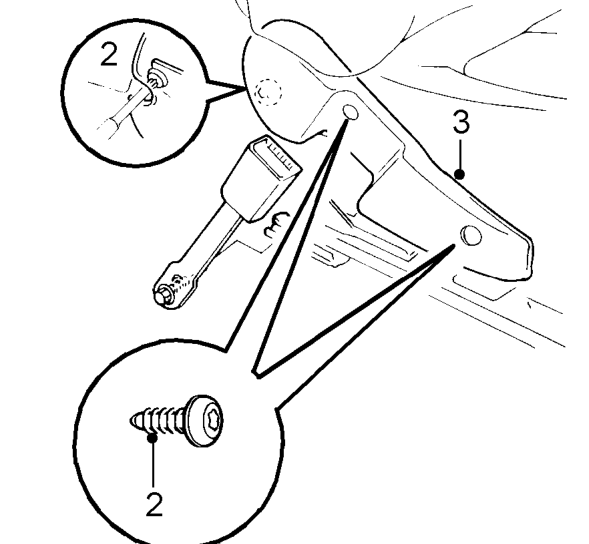

  1. Remove front seat. See this section.
Inner valance - front cushion side – Remove front seat. See this section.
  1. Remove 3 screws securing inner valance to seat.
  2. Remove inner valance.

Refit

  1. Position inner valance, fit and tighten screws.
  2. Fit front seat. See this section.

OUTER VALANCE - FRONT CUSHION SIDE

Service repair no - 78.30.42

Remove

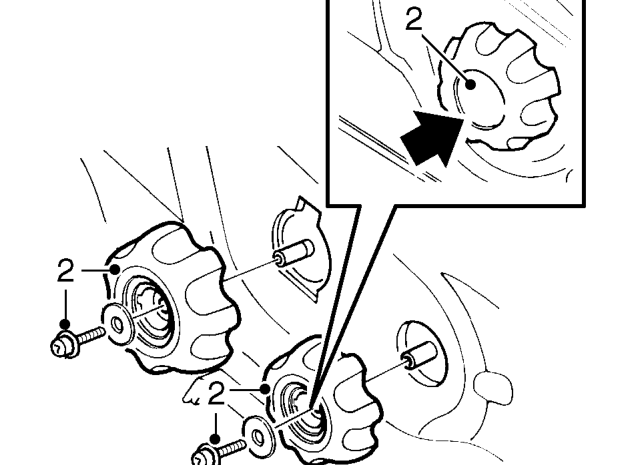

  1. Slide seat fully forward.
Outer valance - front cushion side – Slide seat fully forward.

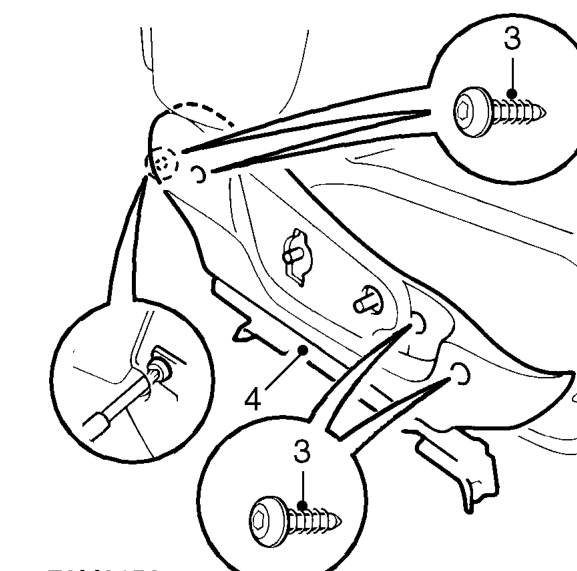

  1. Remove screw caps from recline and height adjust handwheels. Using a Torx bit, remove screws and handwheels.
Outer valance - front cushion side – Remove screw caps from recline and height adjust handwheels. Using a Torx bit, remove scre
  1. Remove 4 screws from cushion outer valance.
  2. Remove cushion outer valance.
