CUSHION COVER REAR SEAT - 4 DOOR

Service repair no - 78.40.01

Remove

  1. Remove rear seat cushion. See this section.

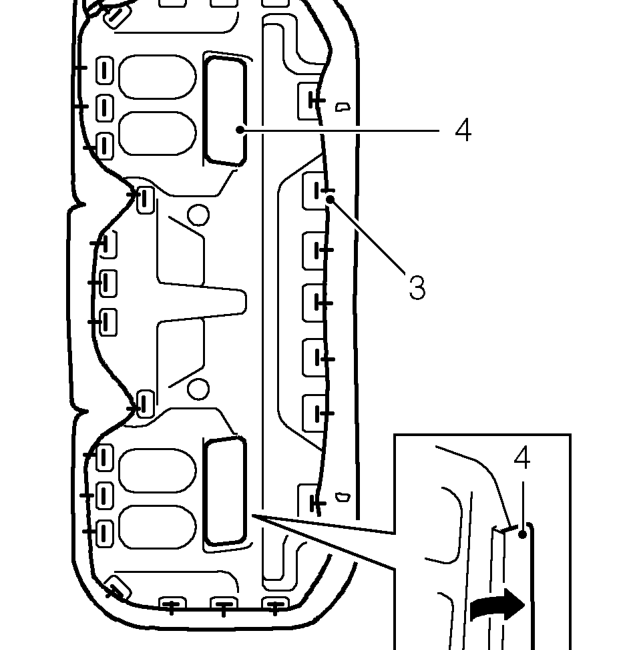

  2. Position rear seat cushion face down on a clean work surface.
Cushion cover rear seat - 4 door – Position rear seat cushion face down on a clean work surface.
  1. Remove 26 hog rings securing cover to underside of overlay.
  2. Release 2 cover retaining flaps from overlay by rotating 90°.
  3. Release cover edges from overlay.

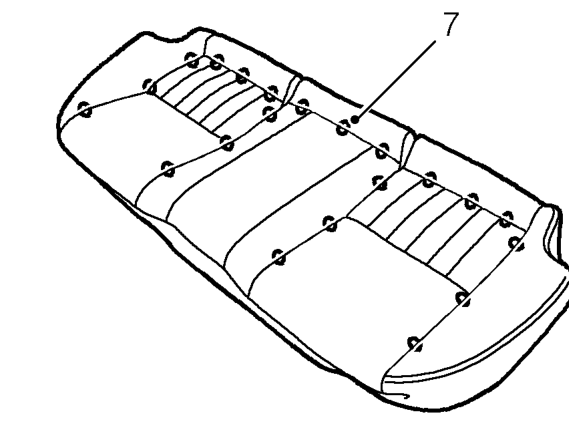

  4. Position rear seat cushion facing upwards on work surface.
Cushion cover rear seat - 4 door – Position rear seat cushion facing upwards on work surface.
  1. Remove remaining 21 hog rings securing cover to overlay.
  2. Remove cover.

Refit

  1. Fit cover to overlay and align to retaining bars.
  2. Feed cover retaining flaps through overlay and rotate 90° to secure.
  3. Position cover to overlay retaining bars and secure with hog rings.
  4. Position rear seat cushion facing downwards on work surface.
  5. Position cover edges to overlay.
  6. Position cover to overlay retaining bars and secure with hog rings.
  7. Fit rear seat cushion. See this section.
