Front seat (page 2 of 2)

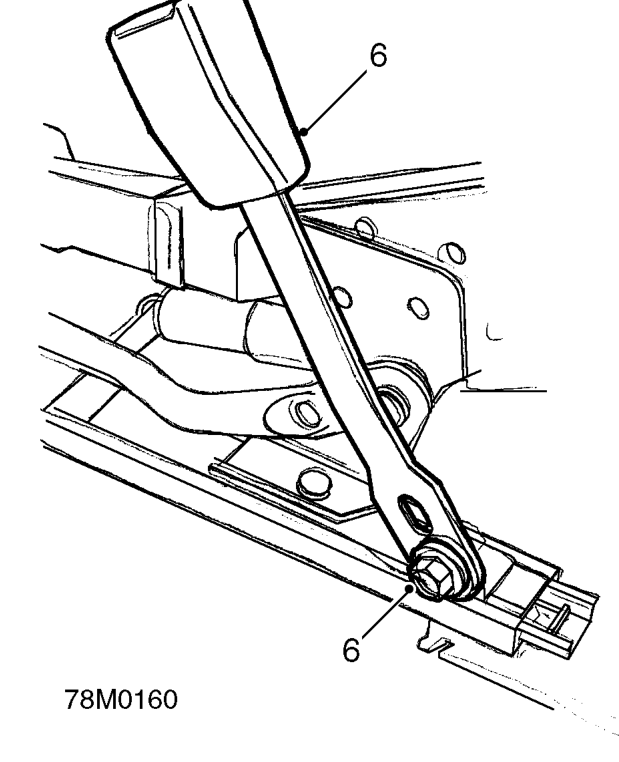

6. Remove bolt securing seat belt stalk to frame then remove stalk.

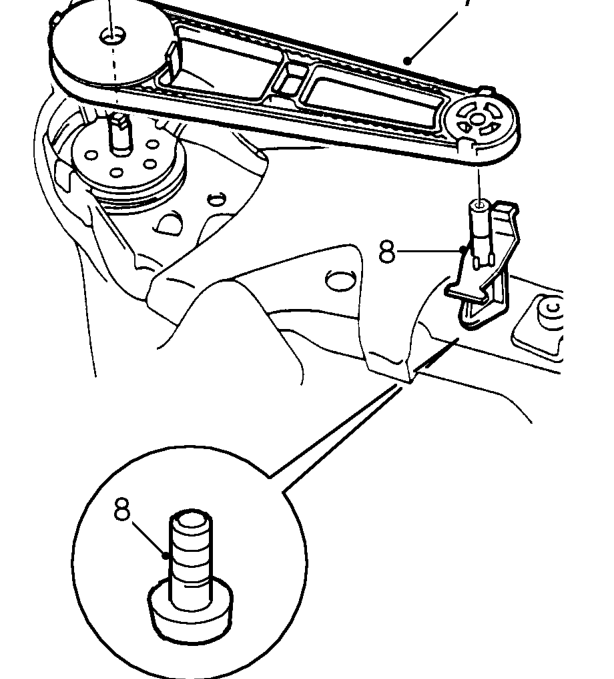

7. Remove clip securing recline gear and remove gear assembly.
8. Remove screw recline gear bracket to frame. Remove bracket.

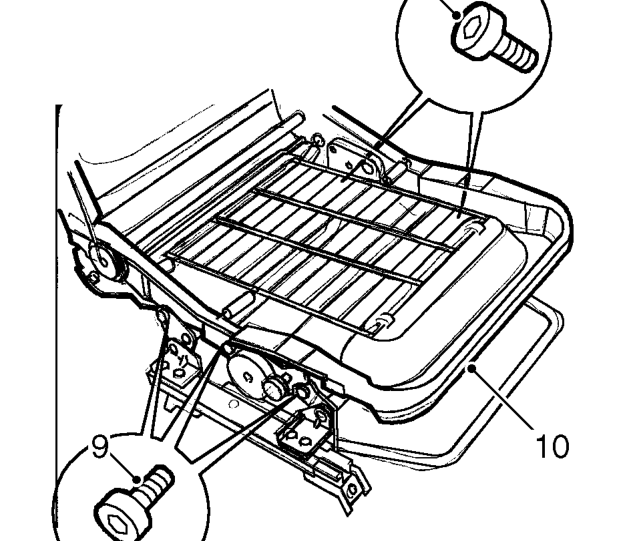

9. Using a Torx bit remove 5 screws securing height adjust mechanism to frame.
10. Remove frame.
11. Remove spring base from frame.

Refit

1. Fit spring base to frame.
2. Position frame and tighten Torx screws to 22 Nm.
3. Fit gear bracket and tighten screw.
4. Position recline gear assembly and fit securing clip.
5. Fit seat belt stalk, tighten bolt to 35 Nm.
6. Position cushion cover and pad.
7. Fit cover studs.
8. Secure cover retainers to frame edge.
9. Fit front squab cover. See this section.
10. Secure cover lower retainers and fit edge clips.
