Rover 400 Workshop Manual (1995-2000)27 · Heating & ventilation
27 · Heating & A/C

Recirculation control switch

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Recirculation control switch
Heating & ventilationRecirculation control switch

RECIRCULATION CONTROL SWITCH

Service repair no - 80.10.21

Remove

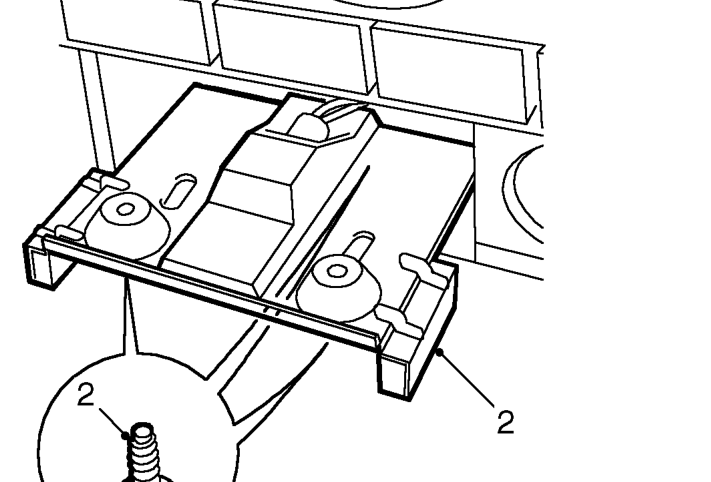

  1. Remove front ash tray.
Recirculation control switch – Remove front ash tray.

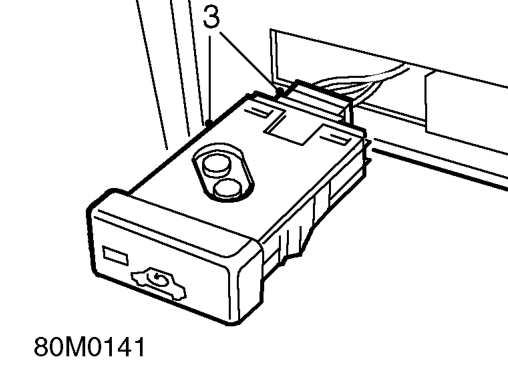

  1. Remove 3 screws and lower the ash tray flame shield.
Recirculation control switch – Remove 3 screws and lower the ash tray flame shield.
  1. Release switch from panel, disconnect multiplug and remove switch.

Refit

  1. Connect multiplug to new switch and fit switch to panel.
  2. Fit ash tray flame shield and secure with screws.
  3. Fit ash tray.
