HEATER UNIT

Service repair no - 80.20.01

Remove

  1. Drain cooling system. See COOLING SYSTEM, Adjustments.

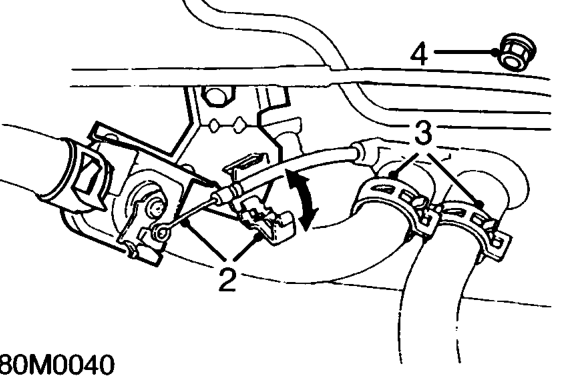

Heater unit – Drain cooling system. See COOLING SYSTEM, Adjustments.
  1. Remove clip and disconnect cable from heater control valve.
  2. Release 2 clips and disconnect coolant hoses from heater matrix.
  3. Remove nut securing heater to bulkhead.
  4. Remove fascia assembly. See BODY, Interior trim components.

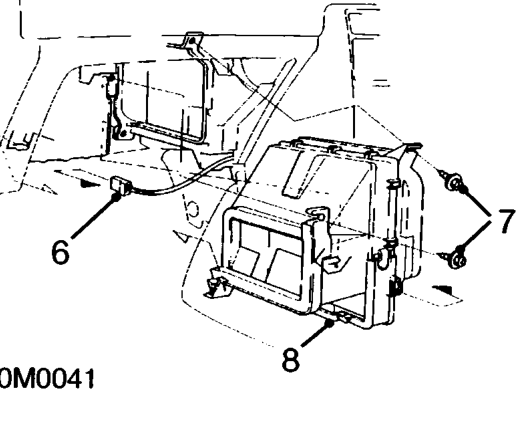

Heater unit – Remove fascia assembly. See BODY, Interior trim components.
  1. Disconnect multiplug from duct.
  2. Remove 2 bolts securing duct to blower and heater units.
  3. Remove duct.

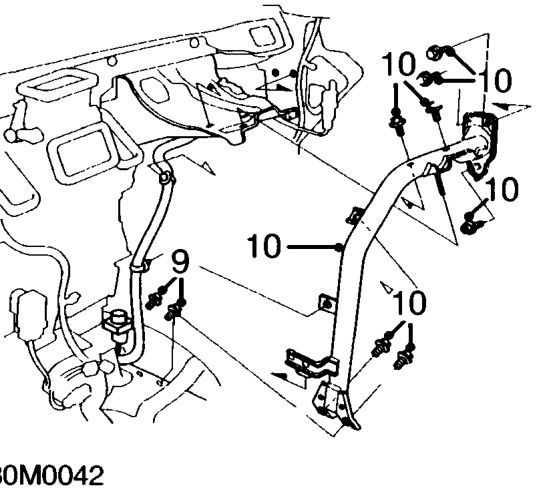

Heater unit – Remove duct.
  1. Remove 2 bolts and move inertia switch and relay bracket clear of steering column support beam.
  2. Remove 7 bolts and remove column support beam.

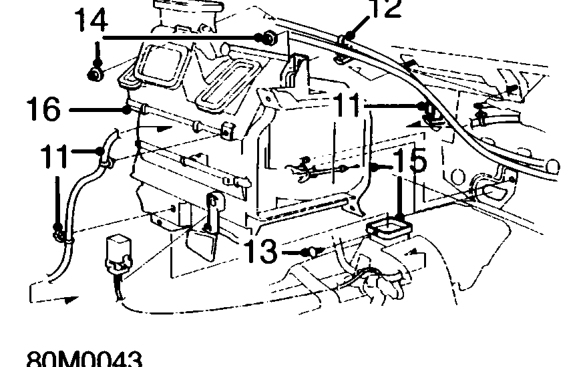

Heater unit – Remove 7 bolts and remove column support beam.
  1. Release 2 SRS harness clips from heater unit.
  2. Release 2 radio coaxial cable clips from heater unit fixing studs
  3. Remove stud securing heater unit to tunnel duct.
  4. Remove 2 nuts securing heater to bulkhead.
  5. Release heater unit from tunnel duct.
  6. Remove heater unit.
