Heater valve

Refit

1. Position cable, fit clip and tighten screw.
2. Fit cable control cover.
3. Fit cable control, fit and tighten screws and fit control knob.
4. Position heater control and connect multiplugs. Fit and tighten screws.
5. Rotate air mix control to cool position, set air mix control lever on heater to cool position and connect inner cable. Secure outer cable to retaining clip.
6. Set air distribution control to vent position, set distribution lever on heater to vent position and connect inner cable.
7. Secure outer cable to retaining clip.
8. Refit front console. See BODY, Interior trim components.

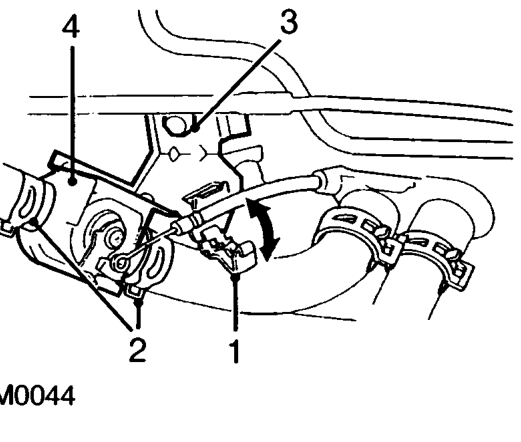

HEATER VALVE

Service repair no - 80.10.16

Remove

1. Release clip securing heater valve outer cable and release inner cable from valve.
2. Release hose clips and disconnect hoses from valve.
3. Remove nut securing valve bracket.
4. Remove heater valve.

Refit

1. Position heater valve, fit and tighten nut.
2. Connect hoses to valve and secure clips.
3. Rotate temperature control to hot, and place heater valve in fully open position.
4. Connect inner cable to valve lever, align outer cable and clamp in position.
5. Refill cooling system. See COOLING SYSTEM, Adjustments.
