Heating & ventilationFan motor

FAN MOTOR

Service repair no - 80.20.15

Remove

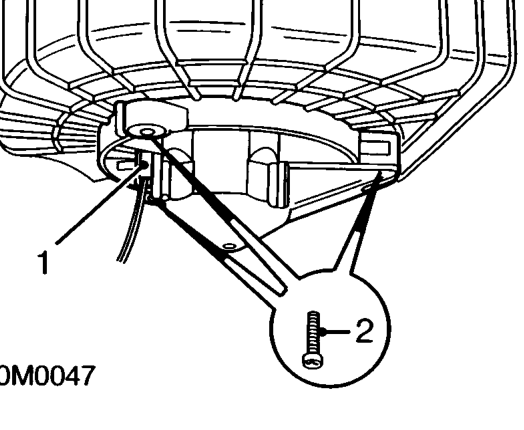

Fan motor – Service repair no - 80.20.15
  1. Disconnect multiplug from fan motor.
  2. Remove 3 screws and remove fan and motor assembly.

Refit

  1. Fit fan and motor. Fit and tighten screws.
  2. Connect multiplug to fan motor.

RESISTOR UNIT

Service repair no - 80.20.17

Remove

  1. Remove glove box. See BODY, Interior trim components.

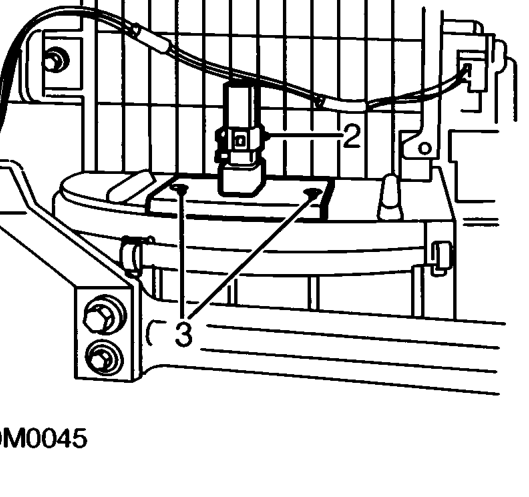

Resistor unit – Remove glove box. See BODY, Interior trim components.
  1. Disconnect multiplug from resistor.
  2. Remove 2 screws and remove resistor.

Refit

  1. Fit resistor and secure with screws.
  2. Connect multiplug to resistor.
  3. Fit glove box. See BODY, Interior trim components.
