Heating & ventilationControl cable - air distribution

CONTROL CABLE - AIR DISTRIBUTION

Service repair no - 80.10.12

Remove

  1. Remove front console. See BODY, Interior trim components.
Control cable - air distribution – Remove front console. See BODY, Interior trim components.

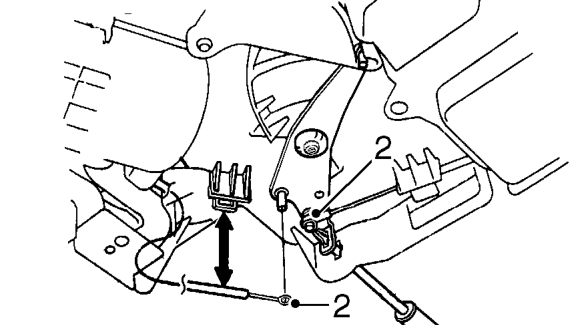

  1. Disconnect air mix and temperature control cables from heater.
Control cable - air distribution – Disconnect air mix and temperature control cables from heater.

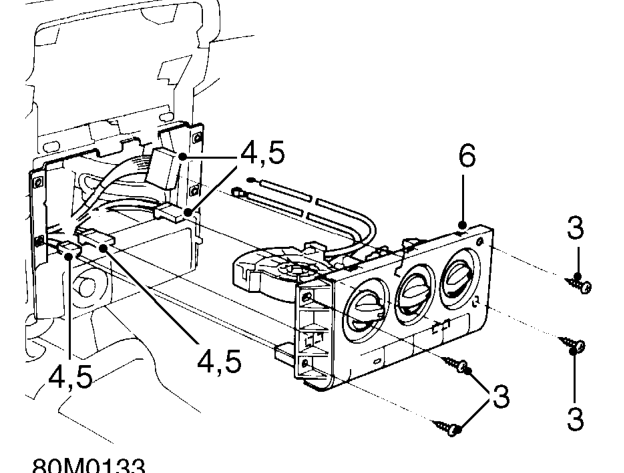

  1. Remove 4 screws securing heater control to fascia and release heater control.
  2. Models with heater: Disconnect 3 multiplugs from heater control.
  3. Models with air conditioning: Disconnect 4 multiplugs from heater control.
  4. Remove heater control.
Control cable - air distribution – Remove heater control.

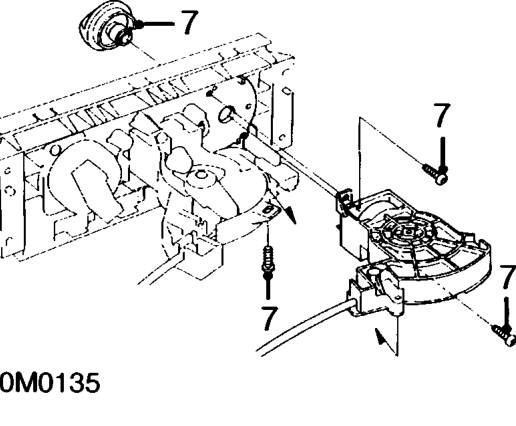

  1. Pull off heater control knob, remove 3 Torx screws and remove cable control.
Control cable - air distribution – Pull off heater control knob, remove 3 Torx screws and remove cable control.

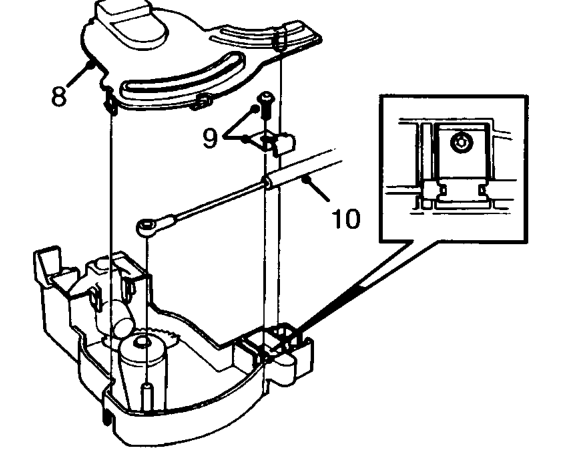

  1. Remove cover for access to cable.
  2. Remove screw and clip securing cable.
  3. Remove cable.
